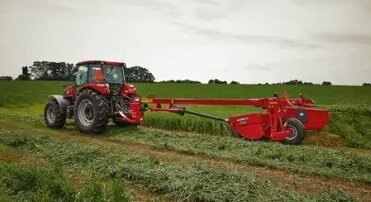

A wide cutting width allows the rotary disc mower to glide at high speeds through lush stands of alfalfa, acres of dense grass and even tough cane crops.
Big Productivity in any Package Size
Case IH now offers additional sizes of center-pivot DC5 series disc mower conditioners for more performance options in a smaller, convenient package. Combined with DC3 series side pull disc mower conditioners, which provide industry-leading cut and crimp for optimal windrow formation and superior nutrient retention, you’ll experience better crop flow and faster dry down while no-tool adjustments and new sizes get you to and from the field faster. Available with the quick-change knife system and three-year cutterbar warranty.
The DC3 series disc mower conditioners have a cutterbar designed for durability and maximized profit. Featuring a modular design, simplified drive system, quick-change knives and counter-rotating discs and a 3-Year Warranty.
Cutterbar Access
Easy Access to the Cutterbar for More Productivty
The Case IH Disc Mower Conditioners cutterbars are easily accessible for adjustments or repairs. Either bi-fold doors or a single-piece hood offers full access.
Conditioners
Best-in-Class Conditioning
The wider conditioners on the Case IH Disc Mower Conditioner series allows for a thinner crop mat, leading to uniform conditioning and greater sun exposure for faster dry down. The torsion-bar roll-pressure design applies equal force to the conditioning rolls for greater consistency, with an almost 1-to-1 cut width to conditioner ratio on DC103 and DC135 models. The innovative Case IH flail system removes the waxy outer layer for faster dry-down in grass.
No-Tool Adjustments
Make Adjustments in the Field
Several systems on the disc mower conditioners can be adjusted without tools, letting you get into the field faster.
Windrow Formation - Swathgate, swathgate fins and forming shields are easily adjusted without tools. Spread wide or narrow to fit your needs
Conditioning Roll Pressure - A single point of adjustment fine tunes the roll pressure
Knife Maintenance - The provided tool allows you to change the quick-change knives in seconds
Cutting Height - Repositioning a pin in the hydraulic tilt cylinder changes the cutting height
Hitches
Maximum Turning Performance
Get maximum turning performance with zero driveline wrap-up. On either the drawbar swivel hitch or two-point hitch the PTO power is transferred from the front swivel gearbox to a second swivel gearbox at the rear of the tongue maintaining perfect alignment of the driveshaft. A simple clevis hitch is also available.
