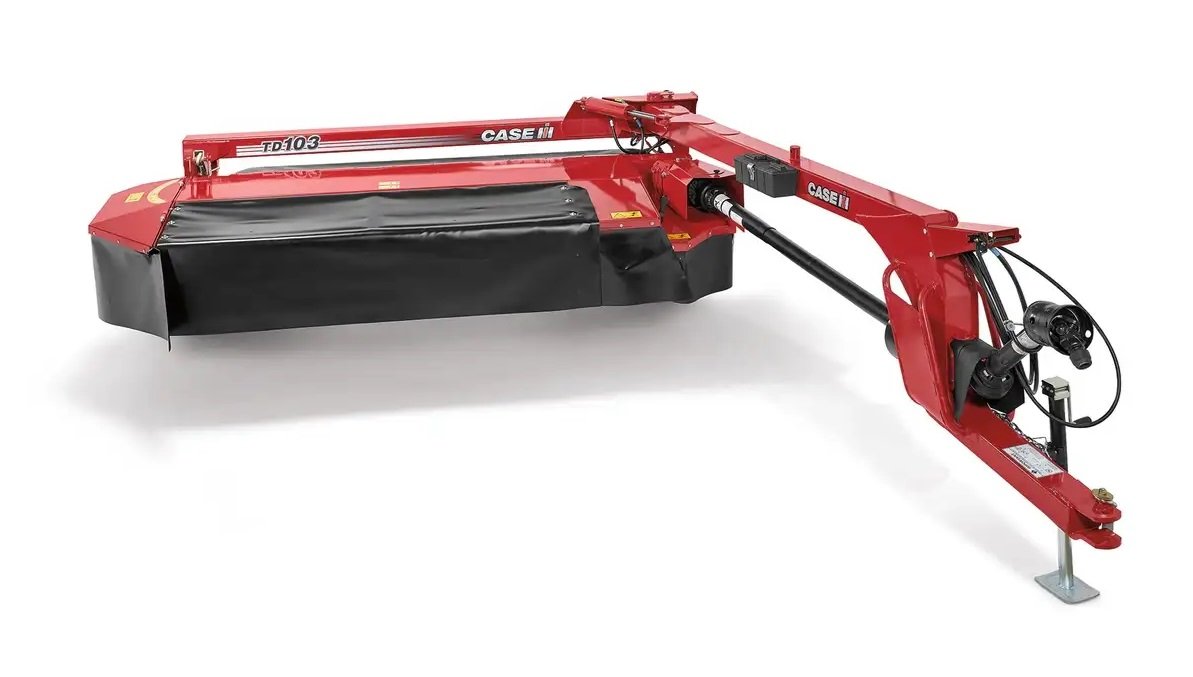

The Case IH TD103 pull-type disc mower features a smooth ride, clean cut, superior trailing ability and narrow transport width, plus easy tractor hookup using a simple clevis hitch.
Superior Productivity, Trailing Simplicity

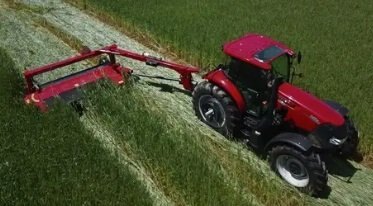

With a rugged and reliable design, Case IH Pull-Type Disc Mowers deliver superior crop flow that reduces streaking and ensures quick mowing. The TD103 can be pulled by lighter weight tractors, has a narrow transport width and hookup is quick and easy.
Quick-change knives cut change time in half – the provided tool makes no wrenches necessary
Crop deflector shields behind each end of the cutterbar direct cut crop into a wide swath inside the tire path
Two end discs co-rotate to provide a narrower swath
Adjust swath from 60–95 in. (1.5 m–2.4 m)
Left cutterbar shield is hinged for easy service access
Unmatched reliability
Shock protection to minimize repair expense
Discs protected from internal gear damage by the drive hub
Constant Velocity Joint
Durability at Every Degree
80-Degrees Constant Velocity Joint
Overload protection is standard

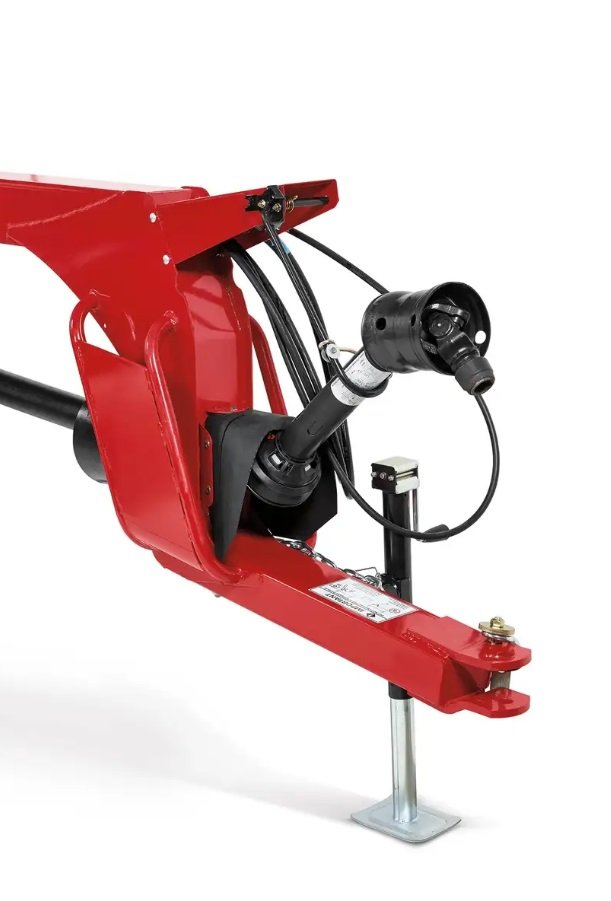

Primary PTO uses an 80-degree constant velocity joint at the tractor end to permit tight turns, reduce noise and extend service life
Standard tractor tire bumpers protect PTO driveline and tractor tires
Tilt Adjustments
Tilt is adjustable from 2–10 degrees using a mechanical turnbuckle

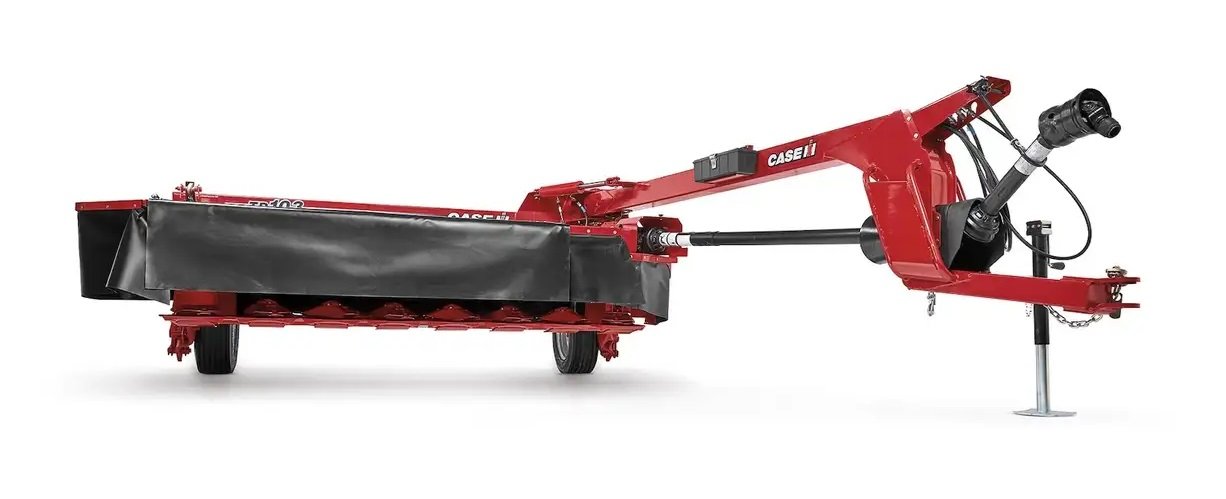

Transport
Easy Transition from Field to Road
Attaching and detaching the mower from the tractor is easily accomplished with a simple clevis hitch. The TD103 can be pulled by lighter-weight tractors, as weight is pulled versus carried on a 3-point hitch.
Transport width is just 10 ft 10 in (3,300 mm) when end shields are folded
Removable parking jack stand is stored on top of tongue assembly
Hydraulic tongue swing cylinder powers the unit from transport to operating position
Has a 12-in (305-mm)-minimum cutterbar ground clearance in transport position
Hinged right-side cutterbar shield folds up for narrow transport
Safety tow chain standard
Low transport height eliminates the need for implement lights
