 Tank Capacity
Increased Seeding Capacity
Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps. Different configurations provide the versatility for a variety of crops and fertilizers. -
Tank Capacities range from 350 to 950 bushels - available with two or three primary compartments
- Up to 39% more product carrying capacity
-
Seed level sensor informs the operator through the Pro 700 when the seed level is low, and an ultrasonic bin level sensor can show tank level at all times.
-
Tank weight scales monitor levels in each tank from either the Pro 700 display or cart-side display
-
Optional video camera package includes cameras for each tank, plus one rear camera to provide ultrasonic live videos on the in-cab display.
-
Auxiliary Tank Option with pneumatic fill system is available for efficient carrying and application of small, low rate crops like canola or micro-nutrients. It can be loaded at ground level.
|
 Tank Accessibility
Easy Accessibility Maximizes Productions
The Case IH Precision Air Carts were designed for easy tank accessibility. - Tanks have large openings, easy-to-grab latch handles and low-profile lids, providing unobstructed movement for the conveyor or auger spout for less seed spillage.
- Internal tank ladders provide convenient, easy access to inspect inside each tank.
- An extra step bar and removable grab post to make getting into and out of the tank easier.
- The spring-loaded folding staircase allows quick access to the tank platform and features solid handrails and slip-resistant treads.
- A large and secure platform provides easy access to the tank openings, allowing you to safely monitor the auger and tank fill levels.
- Platform railings fold down without tools for easy transportation and storage.
|
 Frame Design
Rugged and Maneuverable Frame Construction
Case IH Precision Air air carts’ bridge frame construction delivers strength and maneuverability. With both narrow and wide configurations, the frame provides good flotation and stability.
Hitch options allow the air carts to be towed directly between your tractor and drill or behind your drill for better visibility.
Tow-between and tow-behind tire flotation packages are designed to keep going in the toughest conditions and reduce compaction for higher yields. |
 Fill System
A Fill System Worthy of Any Operation
Choose the fill system that best fits your operation: - Deluxe augers are available on models 3445 to 4585 fill at 44 bushels per minute.
- All carts (other than the 2355 model) can be ordered with a conveyor – increasing operating speed and productivity with optional deluxe auger.

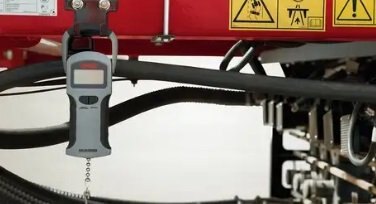

- Both deluxe auger and conveyor options come with easy to use wireless remote control.
- All carts can also be ordered without an on-board fill system, which allows you to tailor your air cart to your needs.
|
 Monitoring
Greater Control From in the Cab
This series of air carts is developed to work with the Case IH Pro 700 control center. This 10.4-inch (26 cm) touchscreen enables easy monitoring and operation from inside the cab: - Application rate and rate control
- Tank bin level and in-tank camera feed
- Ladder position and other warnings.
- Section control system
|
 Cartridges and Rollers
Flexibility That Makes Seeding Simple
Three different types of color-coded cartridges (narrow, half-width, full-width) and rollers (fine, medium, coarse) give you the ability to plant almost any seed or apply fertilizer.
A rice roller is also available. With unmatched accuracy, this feature is designed to meter both hybrid and conventional rice. Current owners of Case IH air carts can install this new roller on current models as well.
The variety of cartridge and roller combinations are interchangeable which lets you tailor the set-up to lower rates when splitting one product from multi tanks. The air cart design also makes the cartridges easy to remove, change and service. |
 Section Control System
Precise Control and Visibility
The exclusive Case IH AccuSection™ modular section control system can improve your operations with precise and accurate rate control and adjustment. AccuSection technology uses individual electronic meter drives to provide primary run control on a per meter basis. Avoid overseeding and overfertilizing with costly overlaps and simply change your setup for different operations. |
 Curve Compensation
Achieve Uniform Plant Populations
Add optional curve compensation to any Precision Air 5 series air cart to ensure proper plant population across the drill in tight turns and corners. With this feature, AccuSection allows each section to apply the correct amount of product as sections speed up or slow down through a turn.
|
