ID # 66520296

Case IH True-Tandem 345 Single-Fold 3-Section

  • Case IH True Tandem 345 Single Fold 3 Section
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

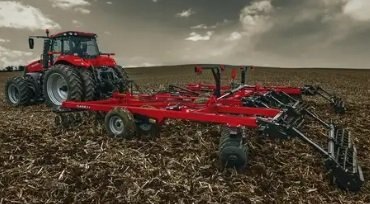

True-Tandem 345 Disk Harrow

Case IH True-Tandem™ 345 disk harrows, with blade spacing of 7.5 or 9 in, provide straight, easy pulling for primary tillage, seedbed preparation or chemical incorporation.

Durable and Innovative Disk Harrows

True-Tandem disk harrows series deliver the latest disk harrows technology combined with Case IH durability. The rugged frame design, exclusive Earth Metal® blades and intuitive depth adjustment help you achieve seedbed perfection.
Specifications
Model
True-Tandem
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Case IH
Blade Size
22in (508 mm)
Frame Type
Single‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌-fold
Max Weight
8778
Min Weight
5476
Working Width
22 to 47 ft (6.7 to 10.4 m)
Size Available
5
Blade Concavity
Standard‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌ concavity
Disk Harrow Type
Tande‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌m
Front Gang Angle
18
Max Working Width
10.4
Min Working Width
6.7
Blade Edge Profile
Soli‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌d
Primary Blade Type
Wave‌‌‌‬‬‌‌‌‌‌‍‬‌‬‬‌‍‌‌‍‌‌‌‌ blade
Horsepower Required
220 - 485 HP (depending on size)
Max Transport Width
5.5
Min Transport Width
4.4
Disk Blade Thickness
4.5
Max Transport Height
4.2
Min Transport Height
3.2
Required Power - Low
19.4
Gang Mounting To Frame
Rigid‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌ or C-Spring Cushion
Optional Blade Edge Profile
Reverse‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌ bevel solid edge
Disk Blade Spacing - In (mm)
7.5‌‌‌‬‬‌‌‌‌‌‍‬‌‍‬‌‍‌‌‍‌‌‌‌ or 9 (191 or 229)
