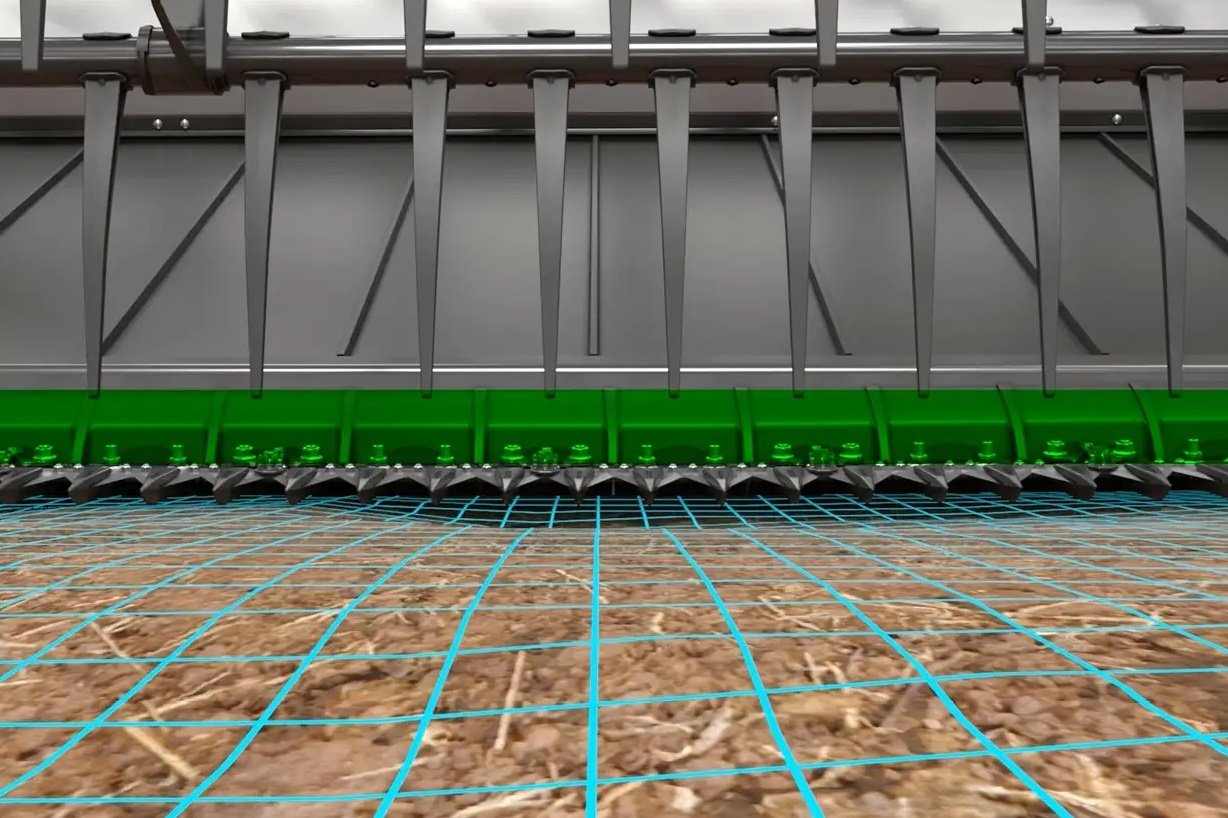

 Flexing Cutterbar & Frame
Max Flex for An Extremely Close Cut
The FD2 PLUS features a simple yet highly reliable leaf spring flexing cutterbar, delivering a feather-light float response that instantly adapts to ground conditions. This system works in tandem with our flexing frame and MacDon’s Active Float System which supports up to 97% of the header’s weight. Together, these three proven mechanical systems provide a reliable instant float response, allowing the FD2 PLUS to cut extremely close to the ground without pushing dirt. A 50-foot FD2 PLUS FlexDraper features 17 inches of wing flex, plus an additional 24 inches of lateral tilt, providing a total flex range of up to 41 inches on either end, independent of the combine. |

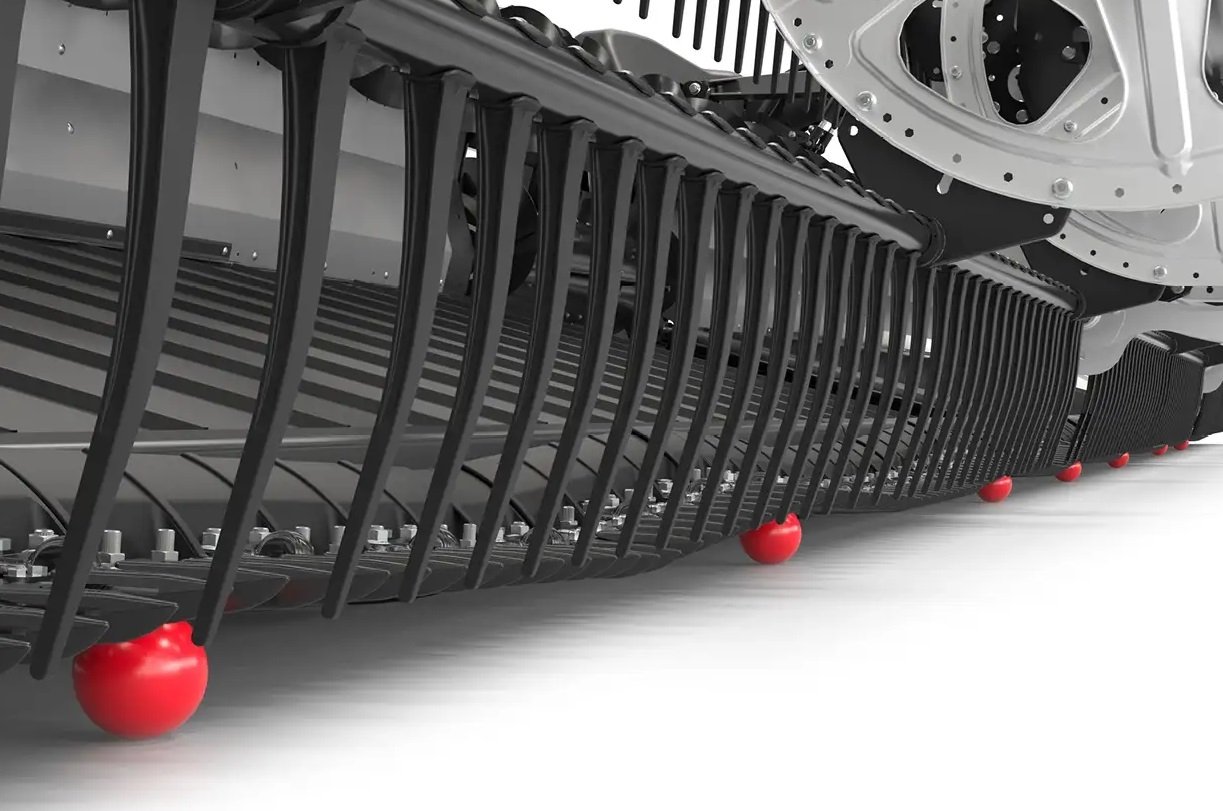

 Reel-to-Cutterbar Relationship
Ensure Delivery of Cut Crop to the Feeder
The FD2 PLUS’ tight reel-to-cutterbar relationship ensures that cut crop reaches the drapers and flows smoothly into the combine. This close alignment is critical for capturing low-podding crops, allowing the reel fingers to lift and guide the cut crop onto the drapers. |
 Frame Options for Multi-Crop Solution
Maximize Performance Across Multiple Crops
With just a few easy lockouts, the FD2 PLUS transforms from a fully flexing frame and cutterbar to a completely rigid unit. Simply locate the leaf springs, apply leverage with the provided lockout tool to lift them, and then insert a lock block. |

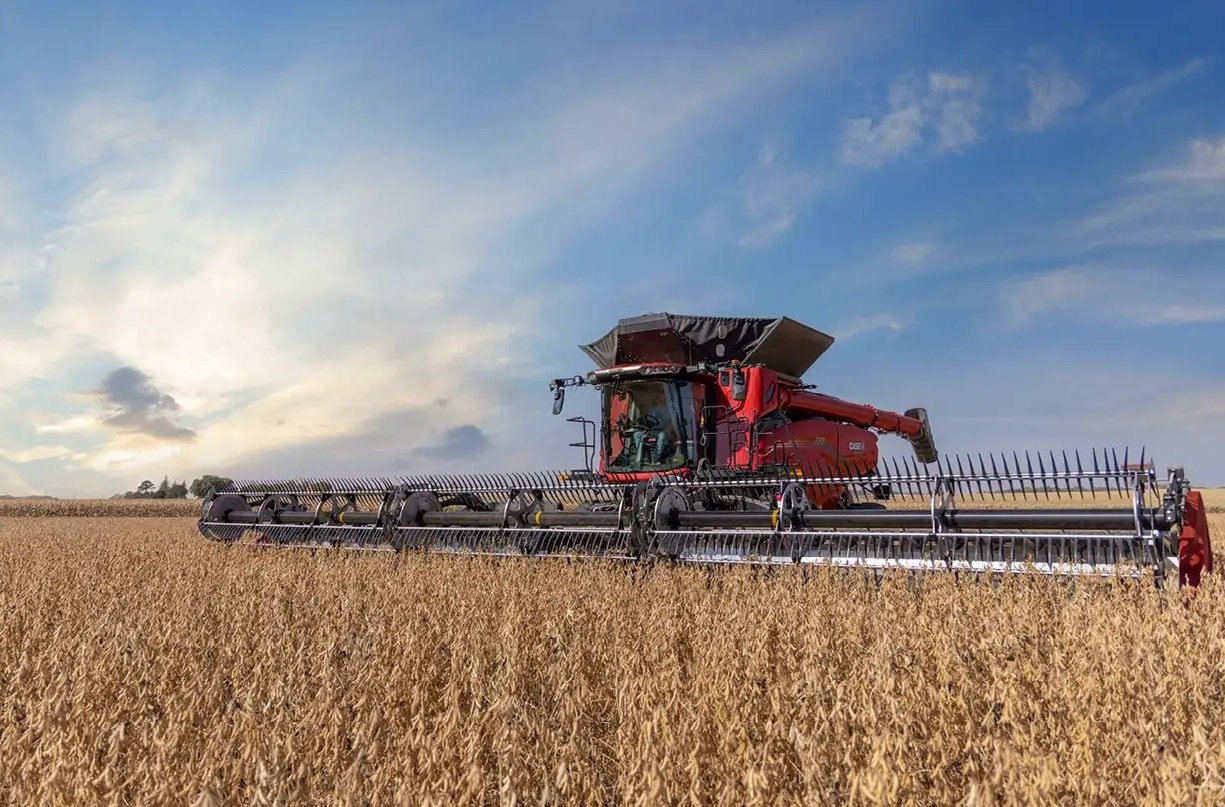

 Size and Configurations Available
Options to Meet Your Needs
The FD2 PLUS is available in 30-, 35-, 40-, 41-, 45-, and 50-foot widths. The FD2 PLUS comes standard with a double knife drive in all widths except 30-ft. A triple reel is standard for 40-, 45-, and 50-foot widths. |

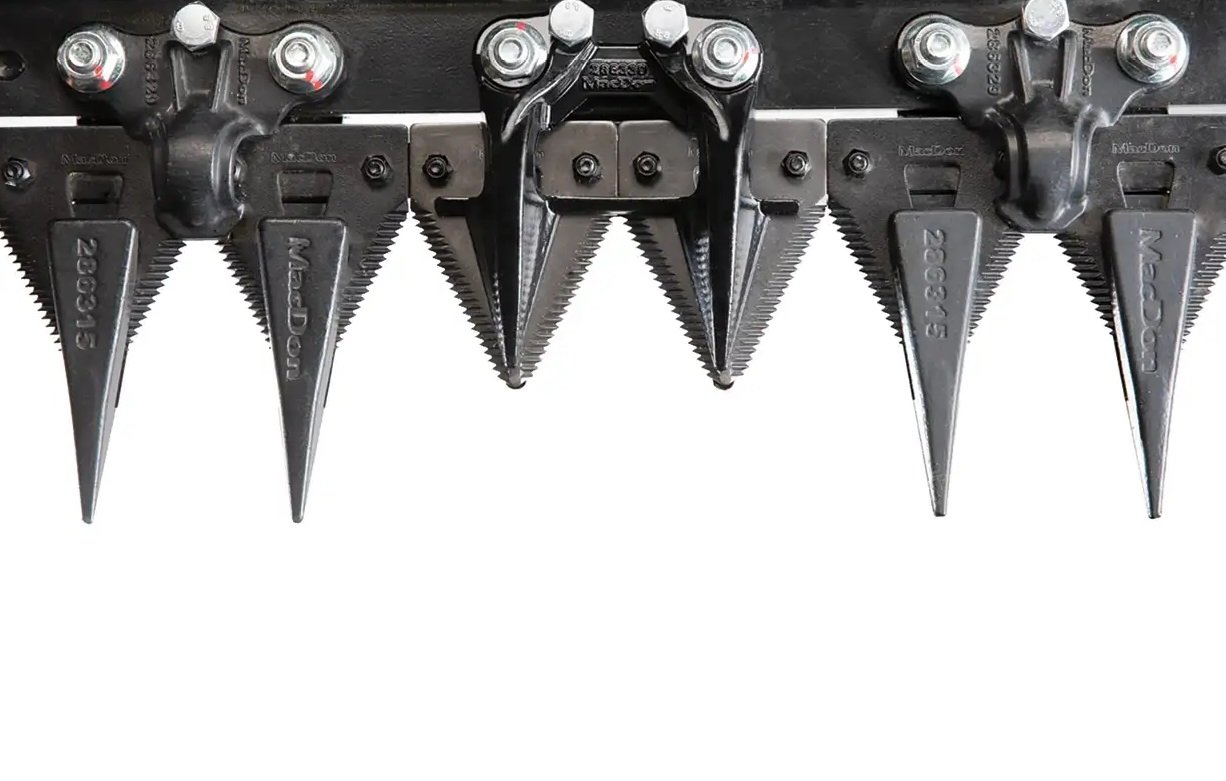

 Knife Drive and Sections
Cut Optimization
The FD2 PLUS is equipped with the ClearCut High-Speed Cutting System which delivers a clean cut at higher speeds to maximize grain capture. The improved knife drive features a robust output shaft, direct hydraulic drive, and a flywheel for smooth operation. A longer blade and optimized knife shape provide you with faster, cleaner cut quality, even when running at high ground speeds. Fitted bolts make in-field knife section replacement quick and easy. |
 Feeding
High-Capacity Feeding
The FD2 PLUS feeding action can be custom configured to match any Axial-Flow combine's performance with combine-tailored speed control and customizable auger flighting. |
 Multi-Tool Convenience
Set-It-Right Multi-Tool
The Set-It-Right Multi-Tool is all you need to get the FD2 PLUS dialed in for harvesting success. Conveniently stored onboard the header, the multi-tool lets you make the following adjustments: -
Set and adjust the header flex and float. -
Set the ShatterGuard reel positioning. -
Adjust the reel finger positioning and reel drive chain tension. -

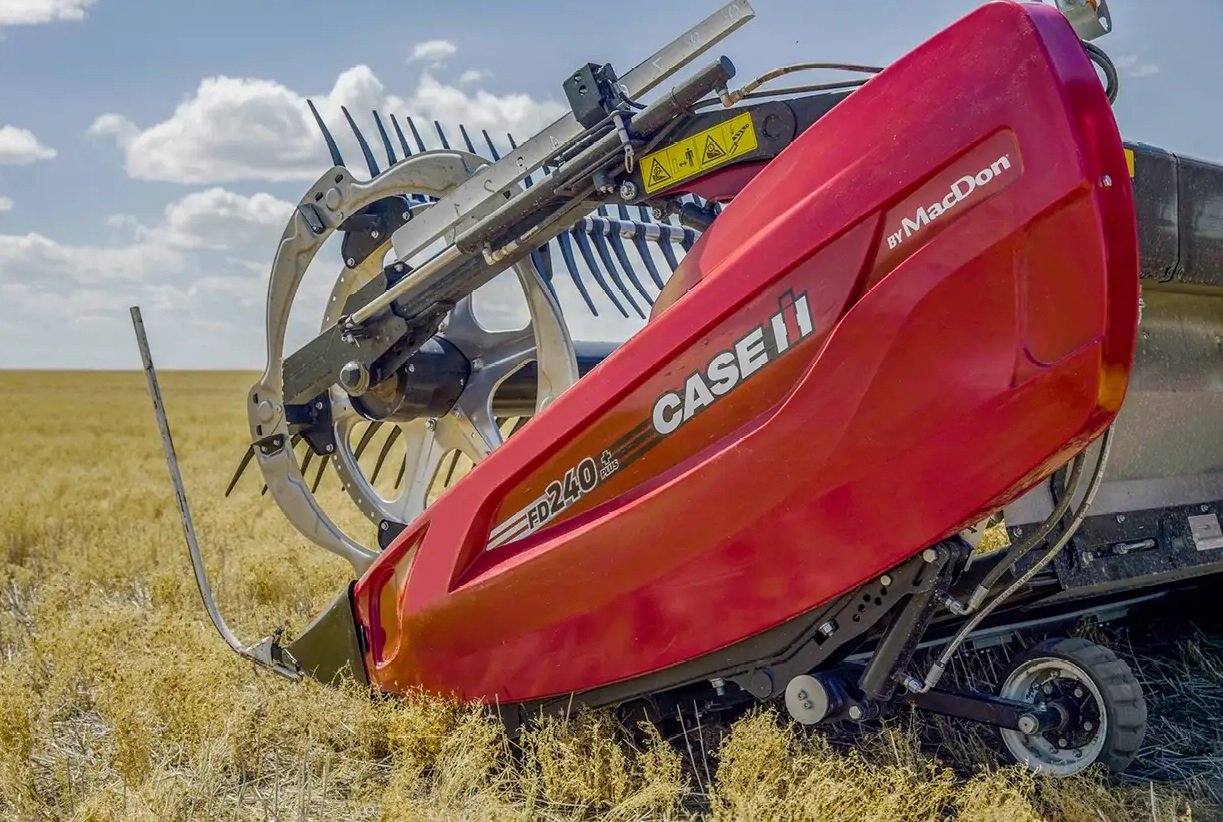

Add and remove end divider cones. |
