Case IH Maxxum 135 CVXDrive

Engine

Efficient, Powerful Engines

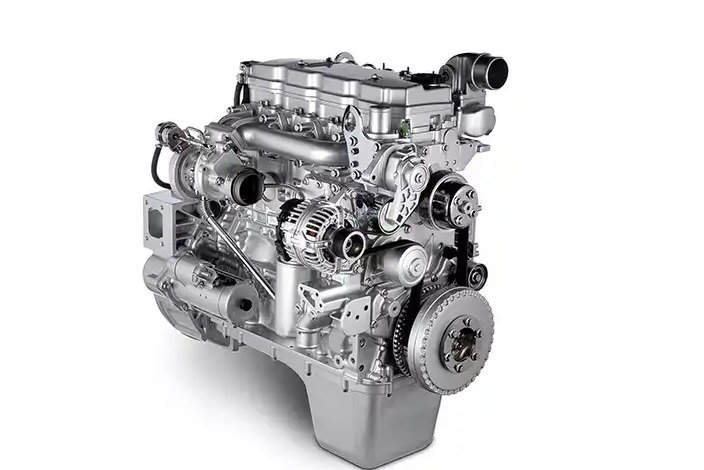

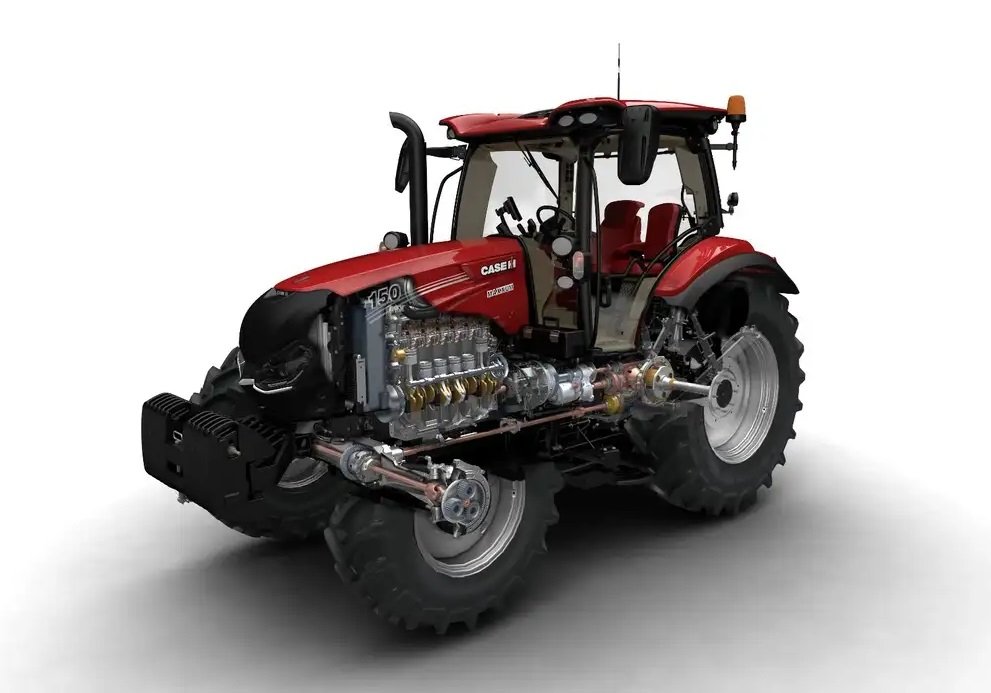

Maxxum series tractors are powered by FPT engines with proven Selective Catalytic Reduction (SCR) emission technology. Turbocharged 4.5-L, 4-cylinder or 6.7-L, 6-cylinder aftercooled engines generate 116- to 150-rated horsepower (95 to 125 PTO horsepower).

• These FPT engines deliver a power boost of up to 24 horsepower on the 4-cylinder models and up to 17 horsepower on the 6-cylinder model.
• Common rail direct injection produces faster throttle response, improved power performance and increased efficiency.
• SCR emission-control technology treats exhaust outside of the engine. This maximizes engine power and fuel efficiency while delivering increased durability and longer service intervals.

Transmission

Transmission Options For Every Job

Maxxum series tractors are available with three transmissions — ActiveDrive 4 semi-powershift, ActiveDrive 8 dual-clutch transmission and CVXDrive continuously variable transmission. Learn about which transmission is right for your operation.

PTO

Power Take-Off Options

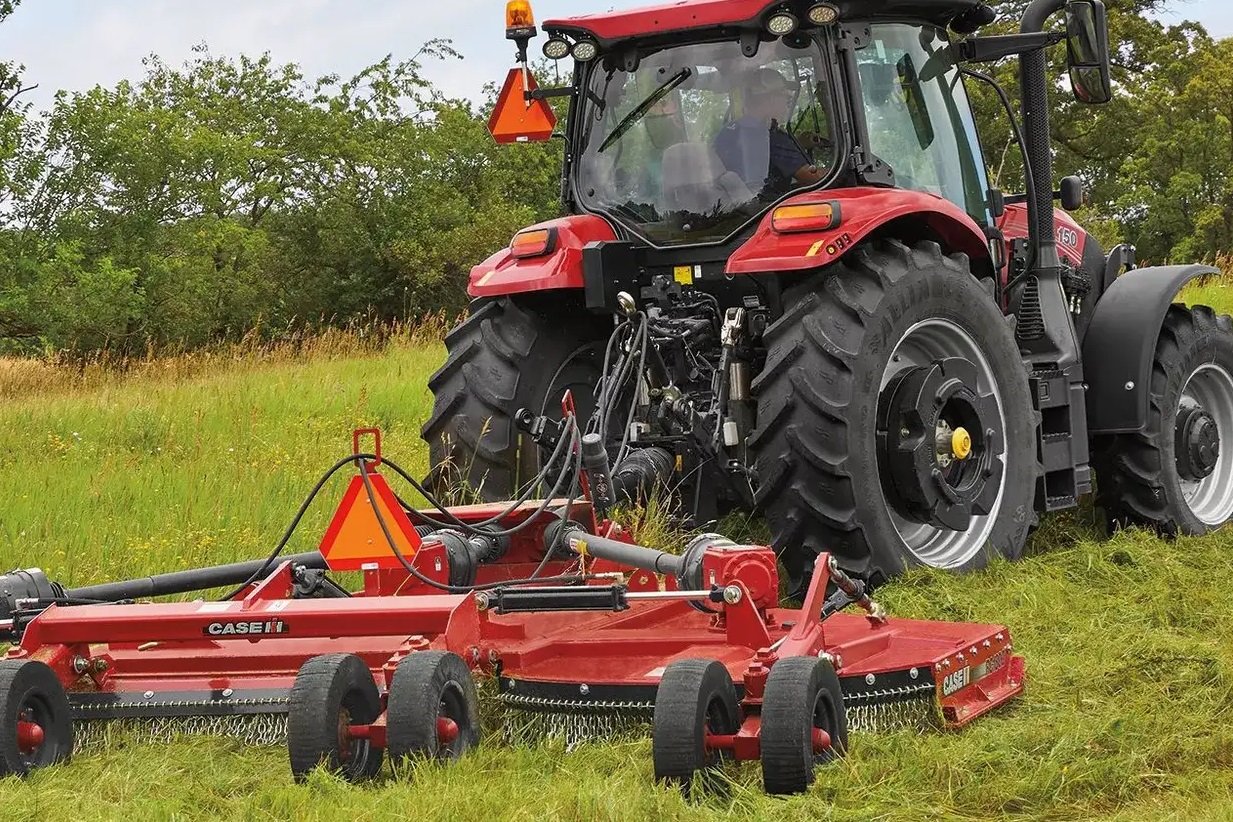

The way implements attach, function and power up is just as important as a tractor’s engine, transmission and cab comforts. Maxxum tractors feature the power and capacity that make it a hardworking versatile machine, plus ease of use that makes for efficient productivity.

• A 540 and 1,000 rpm rear PTO is standard and includes a reversible shaft for fast, easy PTO speed changes.
• A front-mount PTO is available

Hitches

Durable Hitches for All Operations

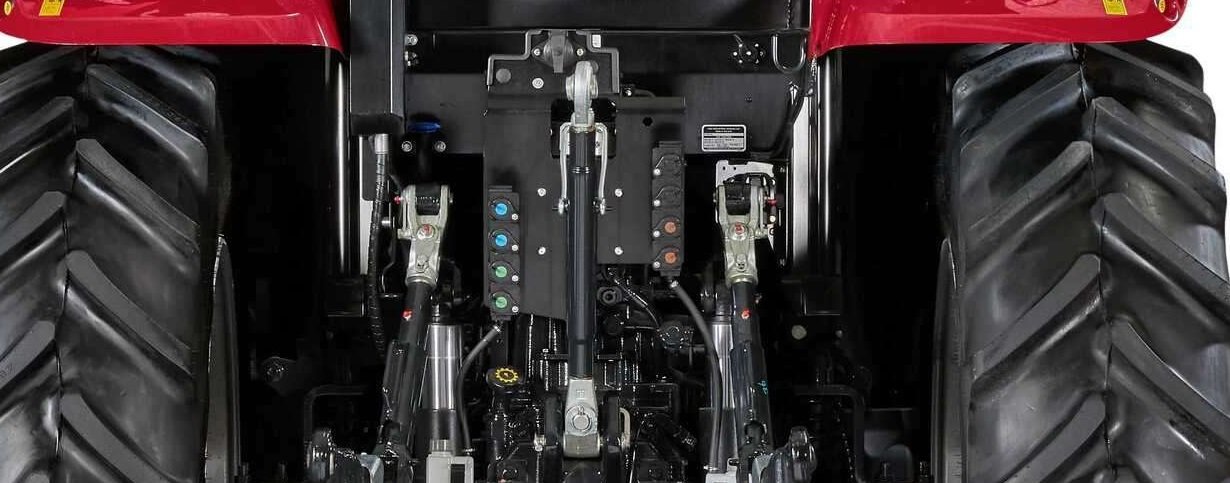

The 3-point hitch features standard telescoping stabilizers and available quick-attach claw ends or telescopic lower links with ball-link ends – making attaching and hooking up implements fast and easy. Available front-mount hitches provide additional versatility. Two turnbuckles provide side-to-side leveling of attachments. A swinging drawbar makes hooking up implements easier or it can be moved out of the way when not in use.


Lift capacities: Mechanical position control and adjustable drop rate make operation easy and precise.

• Standard: Two 80 mm lift cylinders — 6,900 pounds
• Optional: Two 90 mm lift cylinders — 8,945 pounds

Axles & Wheels

Heavy-duty MFD or 2WD Options Available

Maxxum series tractors can take on any kind of field condition. All Maxxum ActiveDrive 4, Maxxum ActiveDrive 8 or Maxxum CVXDrive models feature heavy-duty front-axle options. Maxxum ActiveDrive 4 models also feature a 2WD option.

Operator Environment

Select Your Comfort Zone

Whether you prefer a top-of-the-line, superior operator environment or the basic comforts, Maxxum series tractors let you customize your experience to the level that meets your individual needs.

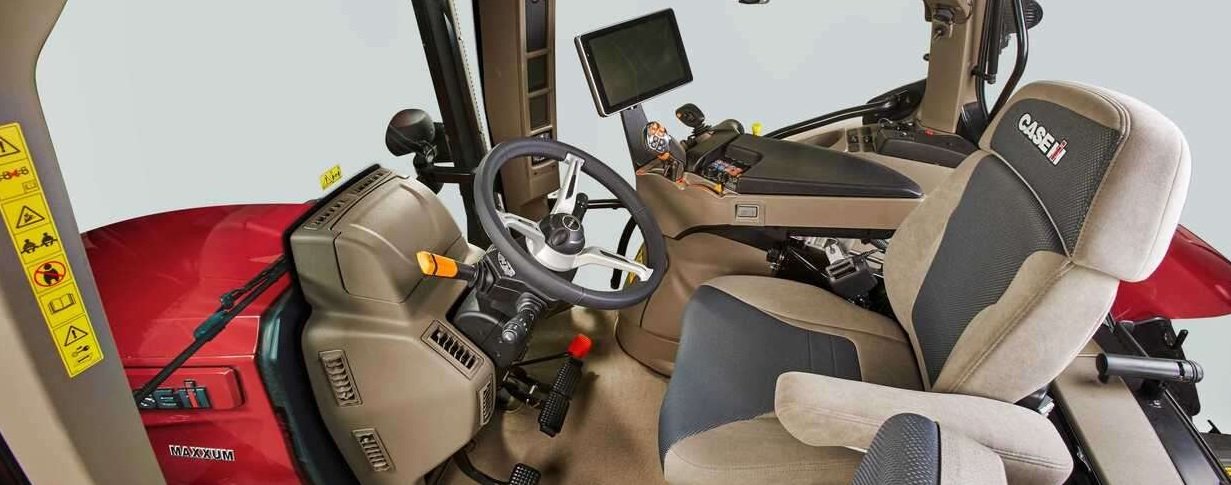

A spacious operator platform complete with left and right cab doors provides plenty of legroom, storage space and room to maneuver. Comfortable seating, intuitive control placement, climate control and wide-open views make long work days more enjoyable.

Case IH Precision Technology

Integrated Precision Farming Technology

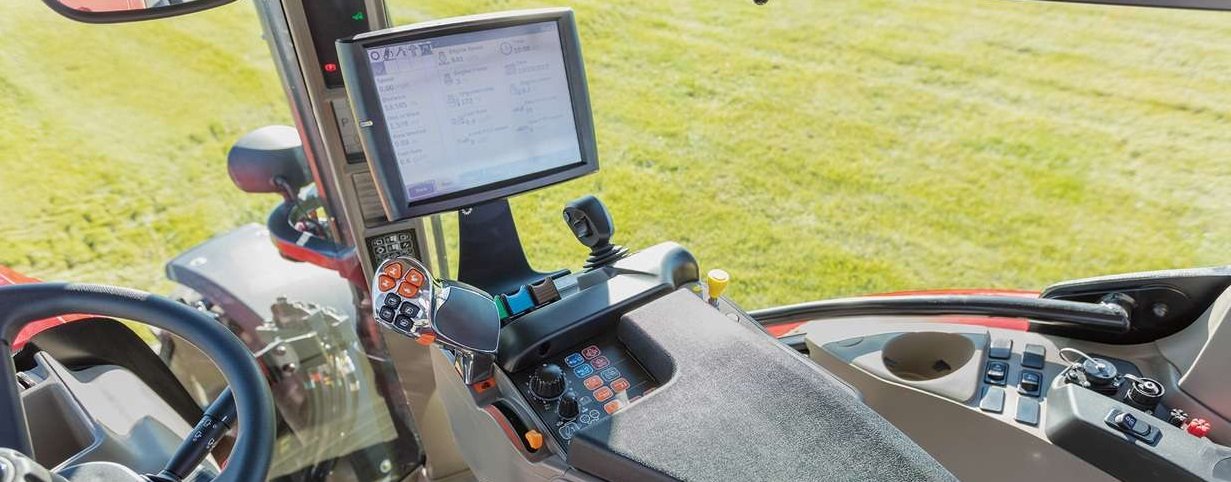

Precision technology components on Maxxum tractors offer dependability and convenience and give you the flexibility you need to help ensure you’re ready to begin gathering data as soon as you pull into the field. Uncover the productivity capabilities of AccuGuide™, the Pro 700 Plus display, and two levels of ISOBUS communications interface.

Hydraulics

Hydraulics to Power the Toughest Jobs

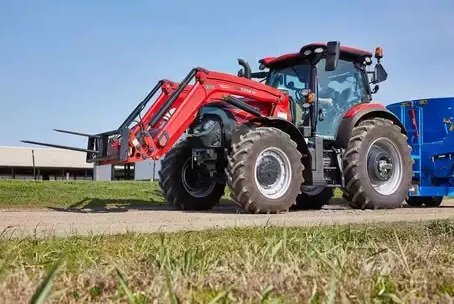

Maxxum tractors provide the hydraulic flow you need to power all kinds of implements and the toughest loader work. Case IH offers two different pump options to meet your needs; the fixed displacement pump is perfect for simple operations that require less flow, while PFC systems are best for operations that require additional or continuous flow. Main implement pump max flow capacity:

• Maxxum ActiveDrive 4: 22.7 gallons per minute — fixed displacement; 31.9 gallons per minute — optional pressure-flow compensation (PFC); mechanical remotes
• Maxxum ActiveDrive 8: 22.7 gallons per minute — fixed displacement; 39.6 gallons per minute — PFC; available with electronic or mechanical rear remotes
• Maxxum CVXDrive: 39.6 gallons per minute — PFC; available with electronic or mechanical rear remotes ​

Advanced Loader Joystick

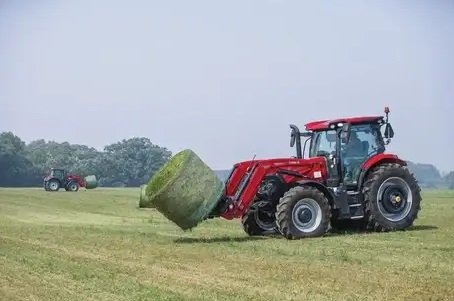

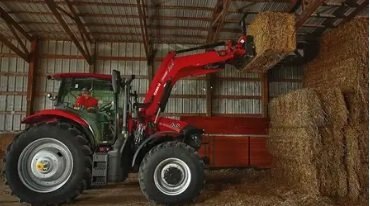

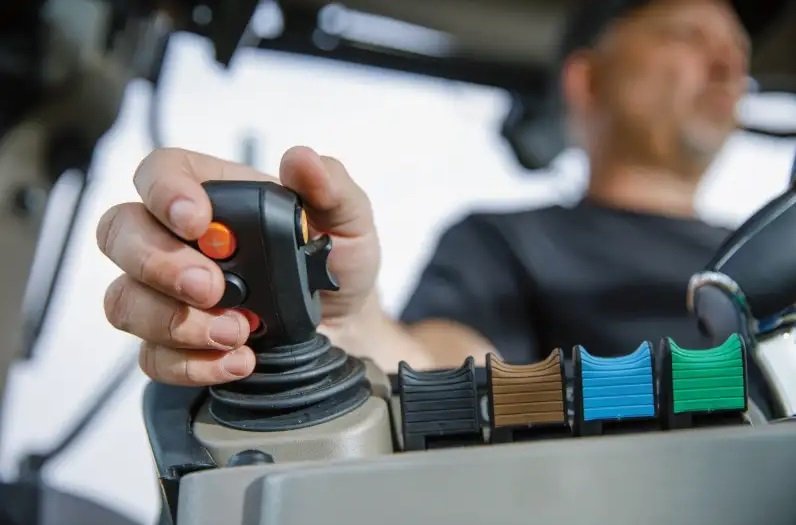

The optional advanced loader joystick allows you to change speeds and direction without removing your hand from the loader joystick.

Maintenance & Uptime

Keeping Running Day After Day

Maxxum series tractors are designed to keep you up and running. Maintenance points are accessible without removing shields and the hood opens without tools. Radiators and coolers fold out for quick, easy cleaning.

Hi-eSCR2 emissions technology allows for longer service intervals – 750 hours for engine oil and 1,500 hours for transmission fluid. Large fuel tanks keep you rolling, while a wide filler opening makes ground-level fueling easy.

Max Protect

Get Peace of Mind with a Max Protect: Planned Maintenance Agreement

• Max Protect is the complete support package from Case IH for model year 2026 and newer Optum tractors, designed to keep the your equipment running at its best and protect your investment for the long haul. It combines key solutions focused to deliver maximum uptime, lower operating costs, and greater peace of mind.
• It includes extended factory warranty for 36 months or 3000 hours, a 36 month/3000 hour Max Maintain planned maintence agreement, and Max Service uptime service assistance.
