Case IH Farmall Utility 75C

Engine

Efficient Horsepower with No Regeneration

A powerful, 4-cylinder, 3.4-L FPT engine features a quick throttle response and builds power fast with a range of 64-74 horsepower.

Common Rail Direct Injection: An electronic high-pressure, common rail fuel injection system precisely meters fuel as power demands, delivering both performance and fuel efficiency. This fuel system also provides improved throttle response, fast recovery to load and quieter engine operation with less vibration.

Tier 4 B/Final Compliant: Engines use an internal Cooled Exhaust Gas Recirculation (CEGR) system to meet Tier 4 B/Final requirements.

No regeneration: Unlike some competitive utility tractors, Case IH Farmall C series tractors do not require a diesel particulate filter, avoiding downtime and increasing productivity with no regeneration.

Transmission

Transmission Options Suited to Your Needs

Farmall utility C series tractors feature transmission options optimized for each model. You choose the transmission that best meets your needs and the way you plan to use your tractor. Regardless, you can rest assured the transmission you select will be easy to operate and will help you get your work done easier.

• Standard 12x12 (12-speed forward, 12-speed reverse) power shuttle transmission
• 12x12 power shuttle with creeper for 20x20

Operator Environment

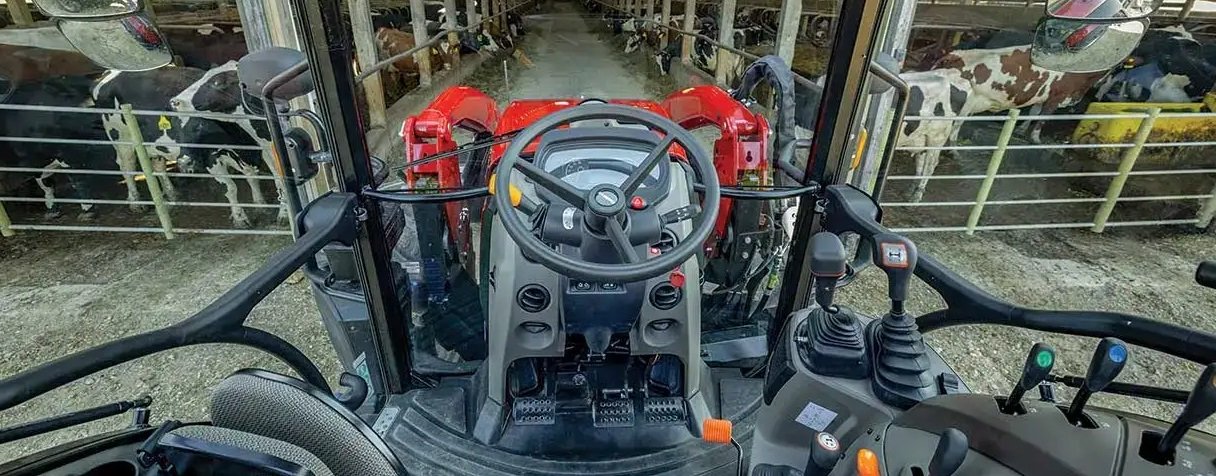

Visibility, Comfort and Control Built for You

Step into a new level of comfort and convenience. A new loader joystick puts all functions in one place with a memory button that lets you pair engine speed for repetitive operations.

ActiveClutch engages both brake and clutch with a single pedal push, facilitating smooth braking and clutching for seamless tractor operation in frequent start/stop operations like loader work.

A high-visibility roof panel improves sight lines for loader work, and a complete instrument panel puts all key tractor functions within sight.

Auto PTO allows for headland management support, automatically engages and disengages the PTO during a headland turn. Auto differential lock lets you automatically activate and deactivate differential lock.

An available integrated cab suspension increases operator comfort.

Hydraulics

Heavy-Duty Hydraulics

Separate steering and implement hydraulic reservoirs let you lift heavy loads without sacrificing your ability to steer. The open center hydraulic system and remote valve options coupled with a 3-point hitch make the tractors capable of handling nearly any implement. Farmall small utility C models pump 12.5 gallons per minute (gpm).

Remotes: Two rear remotes come standard. For even greater flexibility and productivity, add an optional third remote. Also, tractors with the factory-installed, loader-ready option feature two mid-mount remotes.

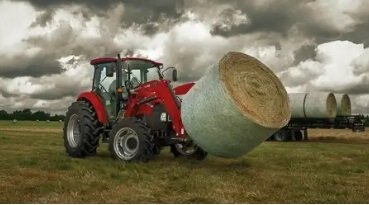

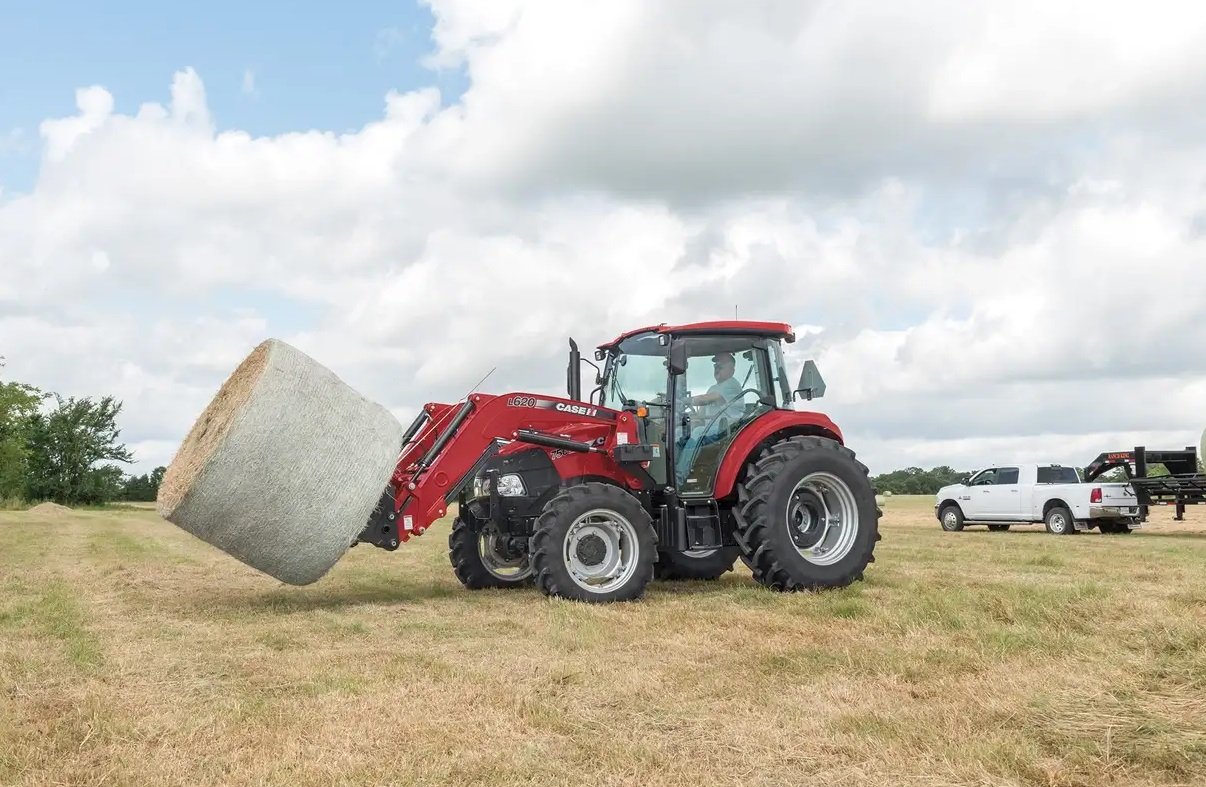

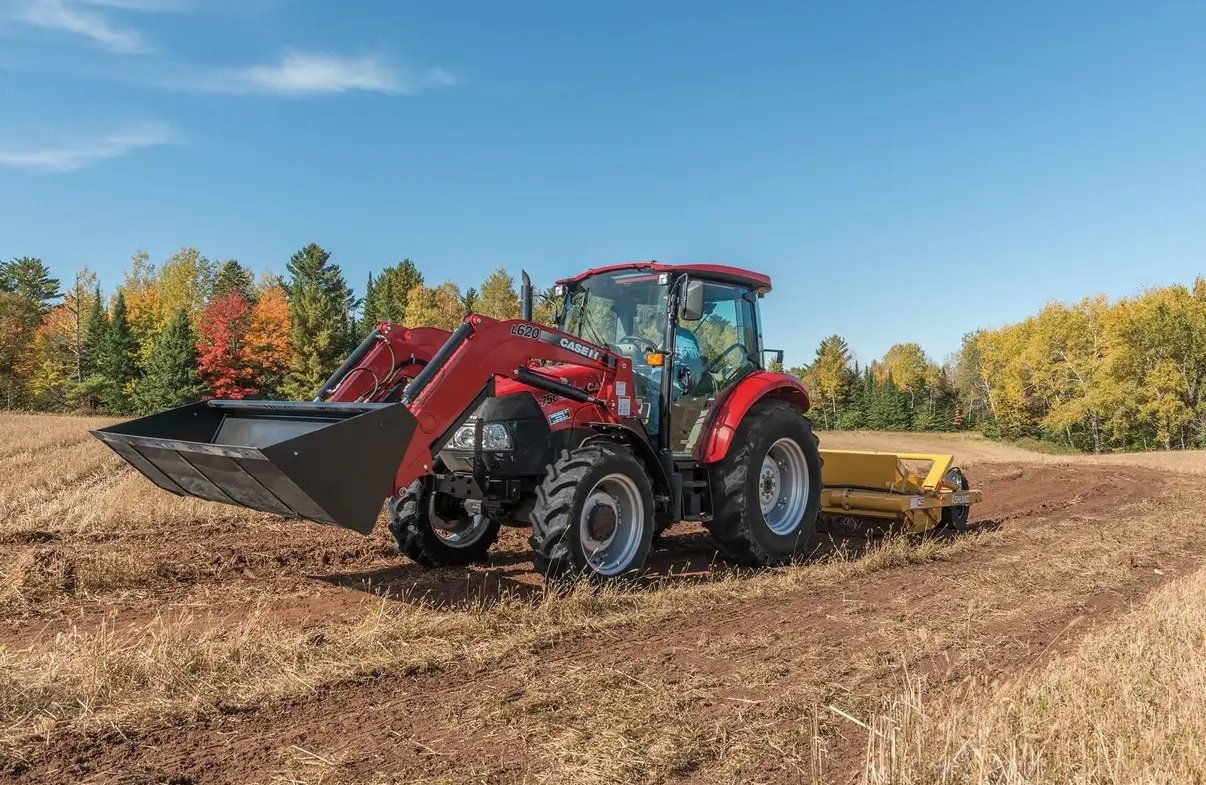

Loader Lift Capacity

• Paired with Case IH L565 loader: 1,940 lb. (NSL) / 2,734 lb. (MSL)
• Paired with Case IH L620 loader: 2,478 lb. (NSL) / 3,179 lb. (MSL)

PTO

Power Take-Off For Every Job

Standard and optional configurations include 540 standard PTO speed, with 540/540E optional.

The 540/540E PTO option provides greater fuel efficiency during less-demanding applications.

Maintenance & Uptime

Quicker to the Job

Farmall small utility C series tractors let you get right to the task at hand without time lost on routine maintenance. After all, the sooner you get to work, the earlier you finish.

Easy Access: A single-piece hood opens without tools. Gas struts support the hood when open for quick, easy access to engine components and checkpoints. Fueling is fast and easy with fuel-tank access from the ground or from the operator platform.

Uptime: Check and fill engine oil without opening the hood. A 600-hour oil-change interval reduces downtime and maximizes uptime.

Max Protect

Get Peace of Mind with a Max Protect: Planned Maintenance Agreement

• Max Protect is the complete support package from Case IH for model year 2026 and newer Optum tractors, designed to keep the your equipment running at its best and protect your investment for the long haul. It combines key solutions focused to deliver maximum uptime, lower operating costs, and greater peace of mind.
• It includes extended factory warranty for 36 months or 3000 hours, a 36 month/3000 hour Max Maintain planned maintence agreement, and Max Service uptime service assistance.
