ID # 37661887

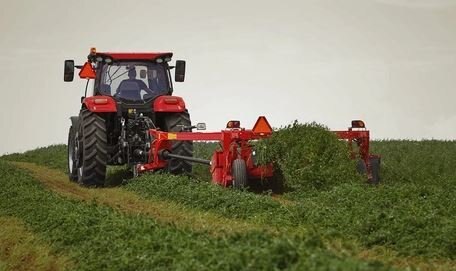

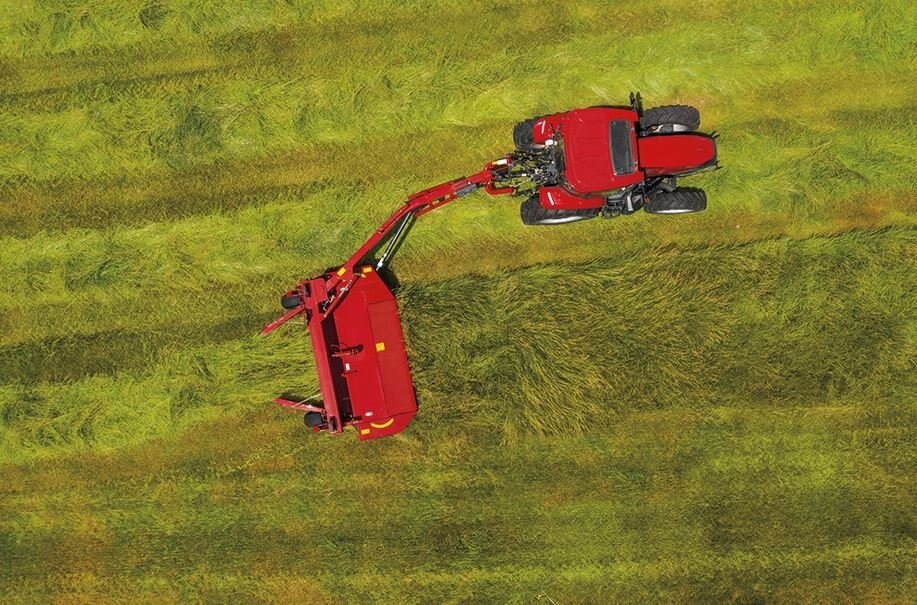

Case IH DC93
Call for Price
Overview
Specifications
literature
Documents
DC939’2” of cutting width available with rubber roll or flail conditioning. |
Big Productivity in any Package SizeCase IH now offers additional sizes of center-pivot DC5 series disc mower conditioners for more performance options in a smaller, convenient package. Combined with DC3 series side pull disc mower conditioners, which provide industry-leading cut and crimp for optimal windrow formation and superior nutrient retention, you’ll experience better crop flow and faster dry down while no-tool adjustments and new sizes get you to and from the field faster. Available with the quick-change knife system and three-year cutterbar warranty. |
Model
Pull-Type Disc Mowers
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Type
Side-pull
Flotation
Up & back, adjustable springs
Tire Size
9.5Lx14L, 6PR
Tongue Type
Side-Pull, straight tongue
Roll Material
Rubber
Disc Speed Rpm
3000
Roll Length In
102
Roll Speed Rpm
647
Number Of Discs
7
Conditioner Type
Roll or Flail
Roll Diameter In
10.4
PTO Rated Speed Rpm
540
Disc Drive Components
Shafts w/bevel gears
Cutter Bar Lubrication
Sealed independent disc modules
Minimum PTO HP Required
65 HP
Cutter Bar Tilt Angle °
2
Number Of Knives Per Disc
2
Hydraulic Relief Pressure Psi
1500
Weight With Roll Conditioner Lb
3740
Literature
| Name | Link |
| EXCEL | Download |
Documents
CompareSpecs.xlsx Model
Pull-Type Disc Mowers
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Quantity
1
Type
Side-pull
Flotation
Up & back, adjustable springs
Tire Size
9.5Lx14L, 6PR
