ID # 37661882
Case IH TD103
Call for Price
Overview
Specifications
literature
Documents

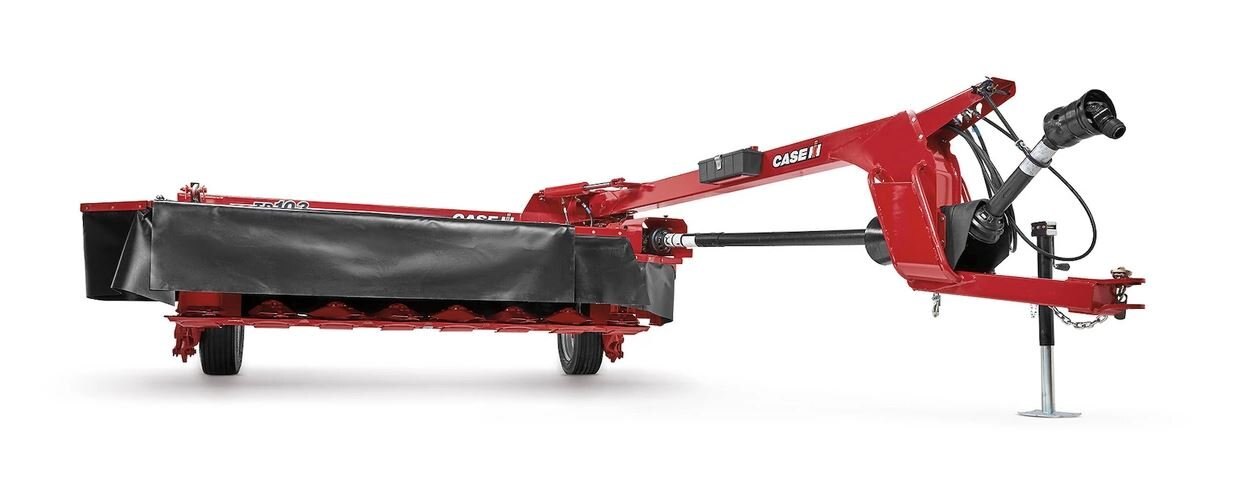

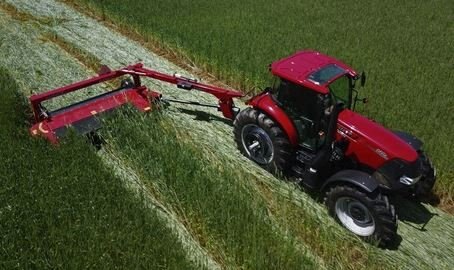

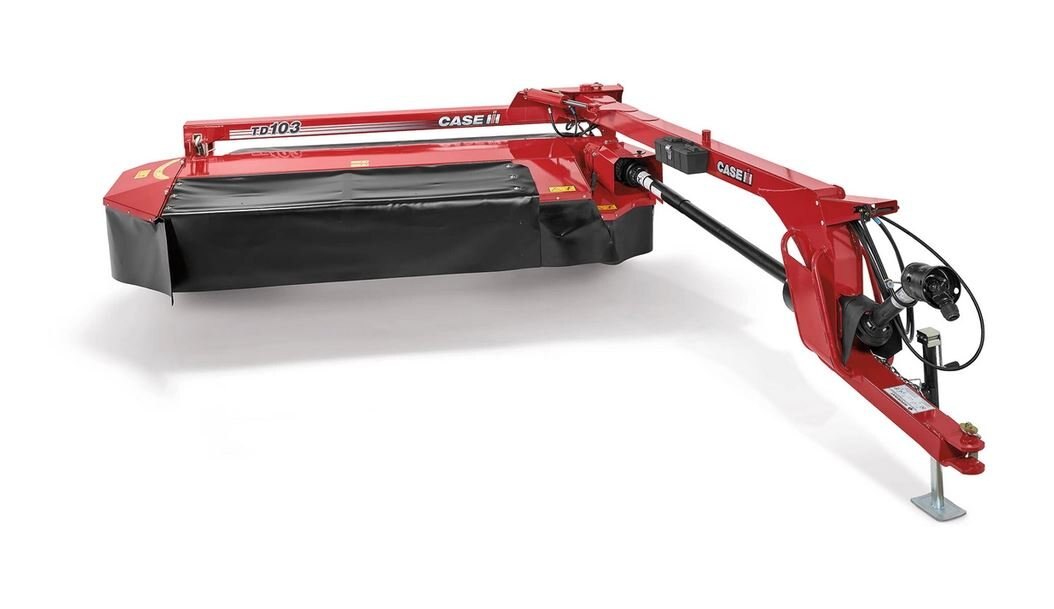

TD103The Case IH TD103 pull-type disc mower features a smooth ride, clean cut, superior trailing ability and narrow transport width, plus easy tractor hookup using a simple clevis hitch. |
Superior Productivity, Trailing SimplicityWith a rugged and reliable design, Case IH Pull-Type Disc Mowers deliver superior crop flow that reduces streaking and ensures quick mowing. The TD103 can be pulled by lighter weight tractors, has a narrow transport width and hookup is quick and easy. |
Model
Pull-Type Disc Mowers
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Weight Lb
2610
Number Of Disks
8
Disc Speed Rpm
2835
Hitch Category
Pin to drawbar
Knives Per Disc
2
PTO Rated Speed Rpm
540
Swath Width Ft-in
7ft 11in
Trailing Tire Size
27x9.5-15, 6PR
Cutting Width Ft-in
10ft 4in
Drive Between Discs
Bevel gears in sealed modules
Number Of Knives/Disk
2
Max Cutting Height In
3.2
Minimum PTO HP Required
60 HP
Transport Height Ft-in
5ft 2in
Transport Length Ft-in
15ft 8in
Cutting Width 10 Ft 4 In
31.5 x 35.4 in. (80 x 90 cm)
Required Tractor Power Hp
60
Hydraulic Circuits Required
1x SA; 1x DA
Mowing Arc From Horizontal
Trailing wheels follow ground
Transport Width Ft-in
10ft 10in
Position Relative To Tractor
Trailing, side-pull
Literature
| Name | Link |
| EXCEL | Download |
Documents
CompareSpecs.xlsx Model
Pull-Type Disc Mowers
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Quantity
1
Weight Lb
2610
Number Of Disks
8
Disc Speed Rpm
2835
