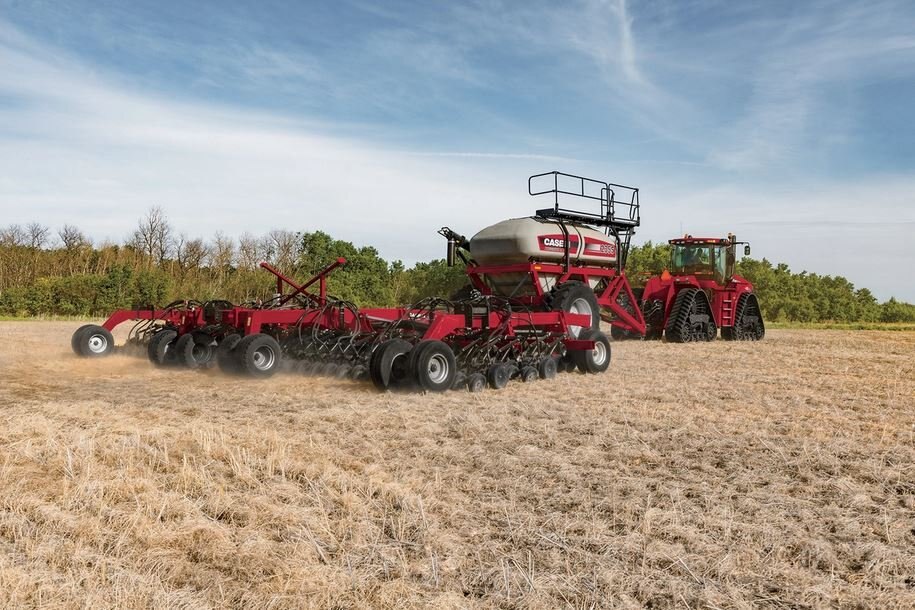

Case IH Precision Disk 550 Air Drill

  • Case IH Precision Disk 550 Air Drill
  • Case IH Precision Disk 550 Air Drill
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Precision Disk 550 Air Drill

Ensure accuracy in your conditions with this versatile seeding solution. Available with tow-behind or tow-between configurations and 30-, 40-, 50- or 60-foot toolbar widths.

Make the Most of Your Season, Soil and Seeds

Case IH Precision Disk air drills are designed to help you work more efficiently, so you can be more productive — no matter the residue conditions you’re dealing with or crops you plant. Precision Disk air drills are a versatile seeding tool to help you seed a broad range of crops more consistently and effectively. Plus, Precision Disk air drills allow you to seed at higher speeds and spend less time on daily maintenance.
Specifications
Download Specs
Model
Precision Disk Air Drills
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Opener Type

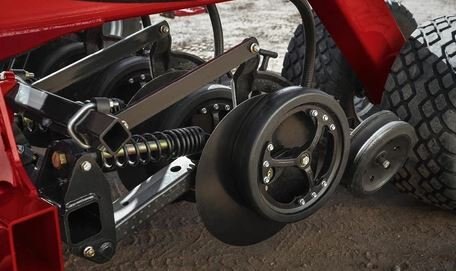

Single 18" (457) coulter, 7 degree angle
Seed Supply
Air Cart
Max Weight Lb
24800
Toolbar Width
30-60 ft
Seeding Method
No-Till disk, parallel link
Weight (empty)
17,790 lb - 28,360 lb (8,070 – 12,860 kg)
Transport Width
12 ft, 5 in – 18 ft, 8 in (3.79 – 5.69 m)
Wing Frame Tire
340/60 R15
Transport Height
13 ft, 1 in– 13 ft, 10 in (3.99 – 4.23 m)
Center Frame Tire
380/55 R16.5
Variants Available
2 widths, 2 row spacings
Max Down Pressure Lb
400
Max Seeding Depth In
3.5
Max Number Of Furrows
64
Number Of Frame Ranks
2
Row Spacings - In (mm)
10 (254) std. or 7.5 (191) opt.
Max Working Width Ft-in
40ft
Max Transport Width Ft-in
18ft 8in
Max Transport Height Ft-in
13ft 10in
Frame Sections And Transport Folding Method
3 section, vertical fold
