ID # 37661833

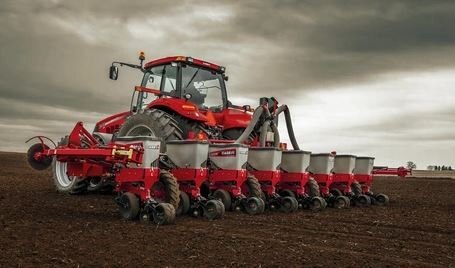

Case IH 1235 Mounted Stacker
Call for Price
Overview
Specifications
literature
Documents
1235 Mounted StackerMove faster through — and between — your fields. That’s the powerful productivity edge you get with 1235 Early Riser mounted stack-fold planters. The heavy-duty 1235 planter offers stack-and-go portability with in-field trackability, especially on beds and short headlands. |
Maximize Yield PotentialThe 1200 Series Early Riser Planters ensures excellent seed-to-soil contact and uniformity with consistent depth control and accuracy across the planter. Side-by-side trials show Early Riser Planters produce 6% more plants on average above the competition. |
Model
1200 Series
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Type
Flex +/- 8 degrees
Markers
Optional
Sections
3
Frame Size
7x7
Seed Drives
8-row (1 mechanical standard, 1 optional hydraulic; 12-row (2 hydraulic standard, 1 mechanical optional); 16-row (3 hydraulic standard, 3 mechanical optional)
Seed Hopper
Row Hoppers
Row Spacings
8-row, 38- or 40-in spacing; 12-row, 30-, 36-, 38- or 40-in spacing; 16-row, 30-in spacing
Closing System
Inverted discs and press wheel
Hookup To Tractor
Mounted or Semi-mounted
Optional Seed Drive
Chain drive, mechanical tranmission
Standard Seed Drive
AccuDrive cable w/o clutch
Depth Gauging System
Single handle, infinite settings
Row Spacings - In (mm)
30, 36, 38, 40 (762, 914, 965, 1016)
Remote Hydraulic Circuits
2 or 3
Metering Device - Option 1
Vacuum
Standard Down Force Method
In-Cab Pneumatic
Seed Delivery, Meter To Furrow
Gravity drop tube
Method Of Folding For Transport
Stacker
Standard Hopper Capacity Bu (US)
1.9
Granular Chemical Capacity - Lb (kg)
Available with Chain Drive
Literature
| Name | Link |
| EXCEL | Download |
Documents
CompareSpecs.xlsx Model
1200 Series
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Quantity
1
Type
Flex +/- 8 degrees
Markers
Optional
Sections
3
