ID # 37661828

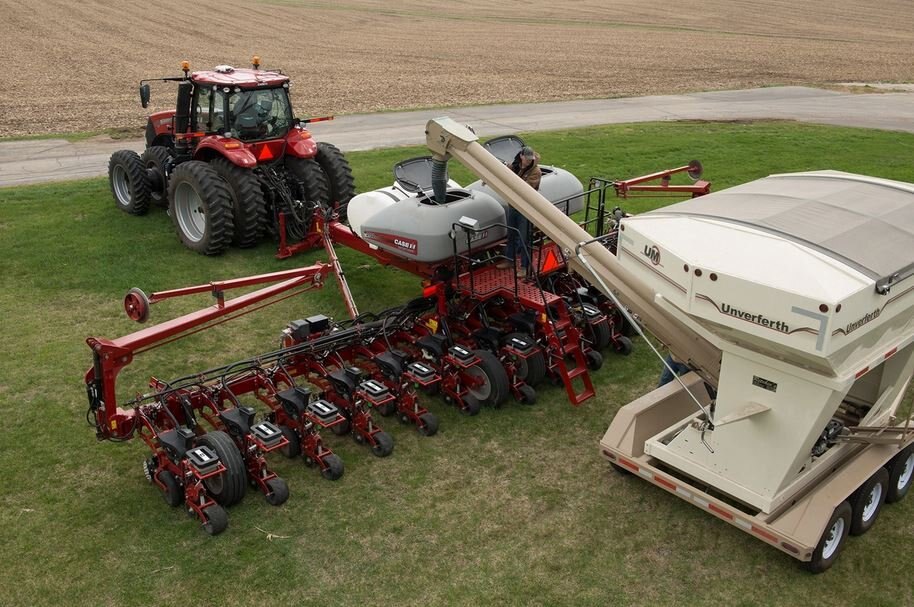

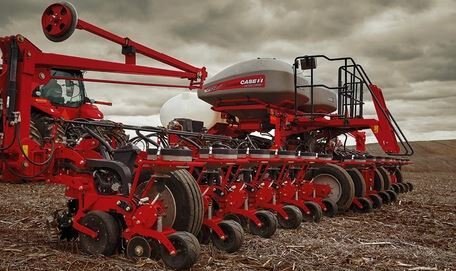

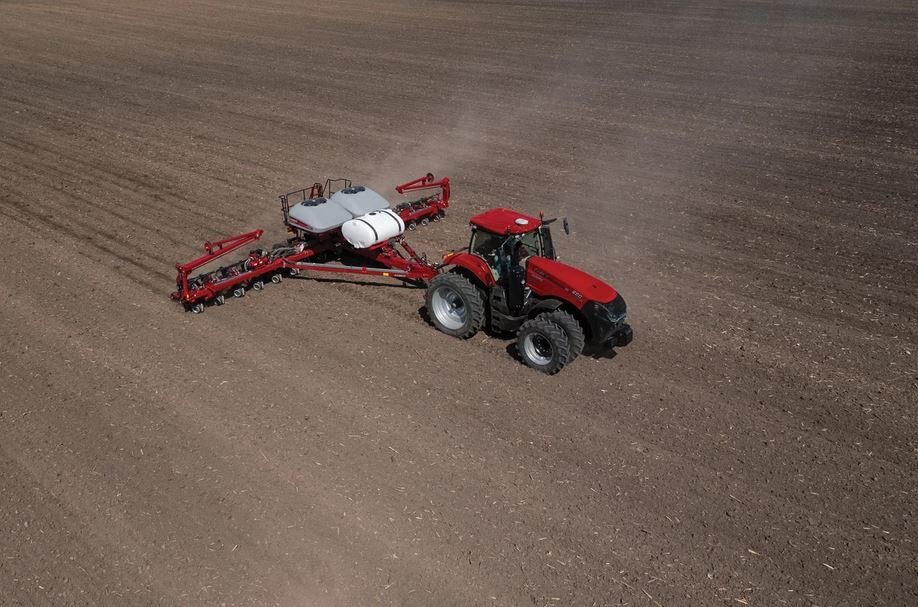

Case IH 2150 Front-Fold Trailing
Call for Price
Overview
Specifications
literature
Videos
Documents
2150 Front-Fold TrailingA 12-, 16, and 24-row planter with 30 inch spacing that requires anywhere from 180-500 engine hp based on planter size and desired speed. |
Maximize Yield PotentialThis easy maintenance planter allows for a customizable seeding depth and plants with accuracy by combining a rugged row unit and accessible T-handle depth adjustment. With the industry’s most accurate technologies, you can achieve high-efficiency planting that adapts to unique field conditions. |
Model
2000 Series
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Type
Wing flex +/- 21 degrees
Markers
Optional
Sections
3
Frame Size
7 x 7-in.
Row Options
12, 16 or 24-row
Seed Hopper
Two Bulk-Fill Hoppers
Row Spacings
30-in spacing
Hookup To Tractor
Trailing
Monitor - Option 1
AFS Pro 700
Max Power Needed Hp
380
Standard Seed Drive
Precision Planting vDrive electric motor, each row
Main Frame Tire Size
VF 245/70 R19.5
Max Planting Width Ft-in
40ft
Liquid Fertilizer Openers
In-furrow or frame mounted, optional
Remote Hydraulic Circuits
3 or 4 remote valves and 1 case drain port
Max Transport Height Ft-in
11ft 5in
Method Of Folding For Transport
Front-Fold
Standard Hopper Capacity Bu (US)
50
Literature
| Name | Link |
| EXCEL | Download |
Videos
Documents
CompareSpecs.xlsx Model
2000 Series
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Quantity
1
Type
Wing flex +/- 21 degrees
Markers
Optional
Sections
3
