Case IH 2140 Pivot-Transport
Call for Price
Overview
Specifications
literature
Videos
Documents

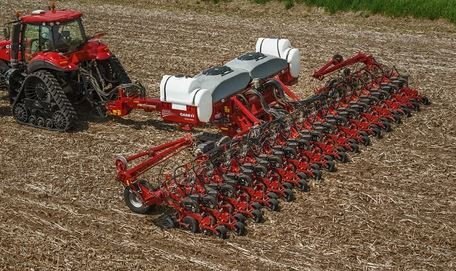

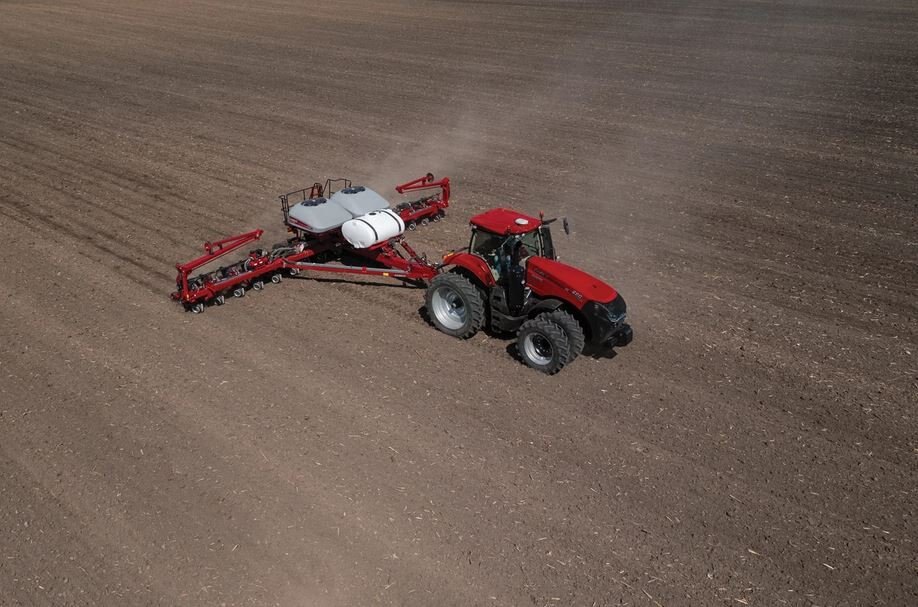

2140 Pivot-TransportA 23-, 24-, 31- or 32-row planter with 15-, 20- or 22-inch spacing with a split row configuration option that requires anywhere from 250 to 380 engine hp, based on planter size and desired speed. Available in wheeled or track carriers. |
Maximize Yield PotentialThis easy maintenance planter allows for a customizable seeding depth and plants with accuracy by combining a rugged row unit and accessible T-handle depth adjustment. With the industry’s most accurate technologies, you can achieve high-efficiency planting that adapts to unique field conditions. |
Model
2000 Series
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Type
Flex, +10 / -7 degrees
Markers
Optional
Sections
3
Spacings
15-, 20- or 22-in.
Frame Size
8 x 8-in.
Row Options
23-, 24-, 31- or 32-row
Seed Hopper
Two Bulk-Fill Hoppers
Hookup To Tractor
Trailing
Monitor - Option 1
AFS Pro 700
Max Power Needed Hp
340
Optional Seed Drive
Additional vDrive motor for SpeedTube flighted belt
Standard Seed Drive
Precision Planting vDrive electric motor, each row
Main Frame Tire Size
440/55 R18 or RowTrac 18" wide
Max Planting Width Ft-in
44ft
Liquid Fertilizer Openers
In-furrow, optional
Remote Hydraulic Circuits
4 with Direct Drive; 2 with PTO pump
Max Transport Height Ft-in
10ft 4in
Method Of Folding For Transport
Pivot-Fold
Standard Hopper Capacity Bu (US)
40
