Case IH Vibra-Tine 265 S-Tine Field Cultivator

Videos
Call for Price
Overview

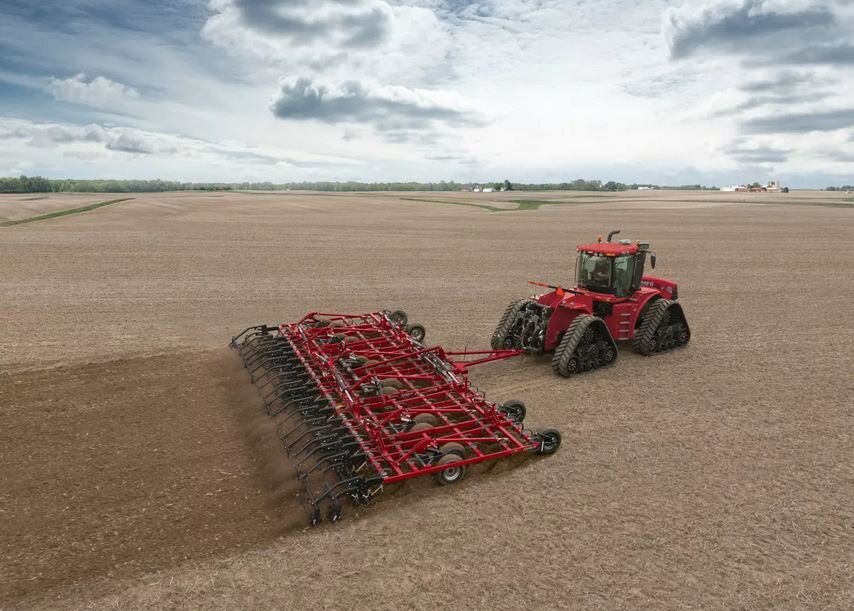

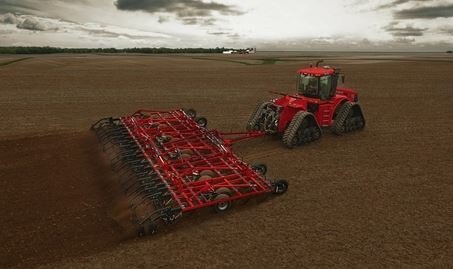

Vibra-Tine 265 S-Tine Field Cultivator

Productive and agronomically designed field cultivator equipped with vibrating S-tine technology effectively works high-clay and timber soils, creating a better seedbed.

Rethink Seedbed Productivity

The Tiger-Mate 255 technology is designed to maximize yield potential in one spring pass. field cultivator creates a high-efficiency seedbed for the most accurate seed placement. From crop residue management to soil tilth to seedbed conditions, we designed this field cultivator with an eye on improving agronomic performance.

For high-clay and timber fields, the Vibra-Tine 265 S-tine field cultivator helps achieve optimal clod-sizing, a smooth field finish and healthier soil. Proven and effective S-tine technology is designed to maximize yield potential in one spring pass.

Specifications
Model
Field Cultivators
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Frame Type
Single-fold, Double-fold
Depth Control
Hydraulic single point
S-tine Pattern
4-in spacing
Number Of Ranks
6
Sizes Available
4
Number Of S-tines
78 – 144
Frame Configuration
3 Section, Folding
Max Total Weight Lb
13800
Max Number Of Shanks
96
Wing Frame Tire Size
280/70 R15
Connection To Tractor
Pull-Type, Category 2 or 3 drawbar
Center Frame Tire Size
280/70 R15
Pull-type Hitch System
Constant level
Max Working Width Ft-in
32ft 6in
Shank Spacing - In (mm)
12 (305)
Underframe Clearance In
24
Max Required Power Hp/ft
10
Transport Wheel Mounting
Walking tandem
Max Standard Trip Load Lb
110
Max Transport Width Ft-in
16ft 4in
Max Transport Height Ft-in
14ft
