Case IH Tiger-Mate 255 Field Cultivator

Videos
Call for Price
Overview

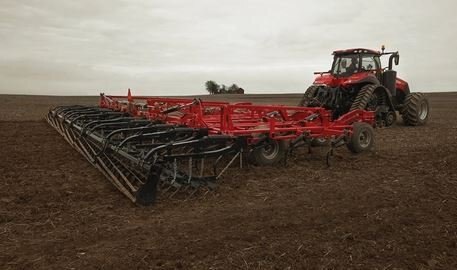

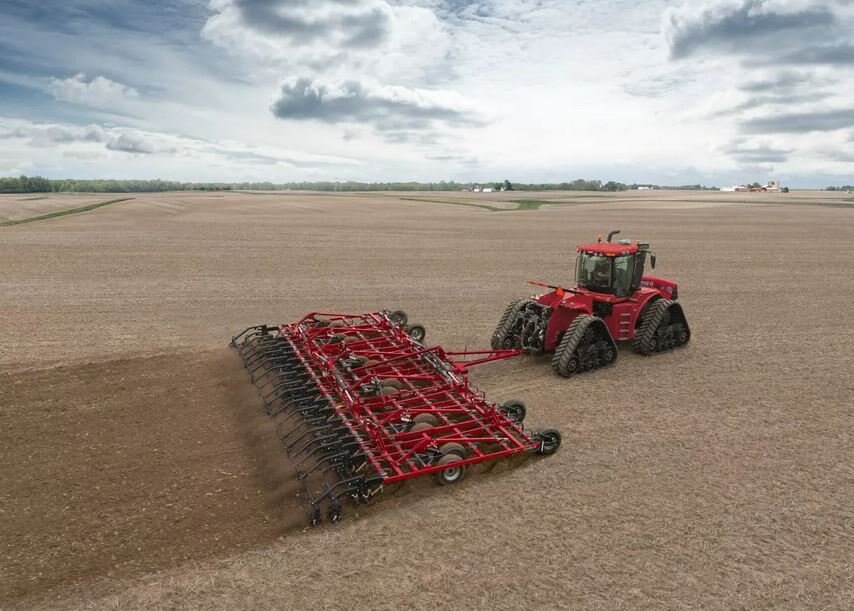

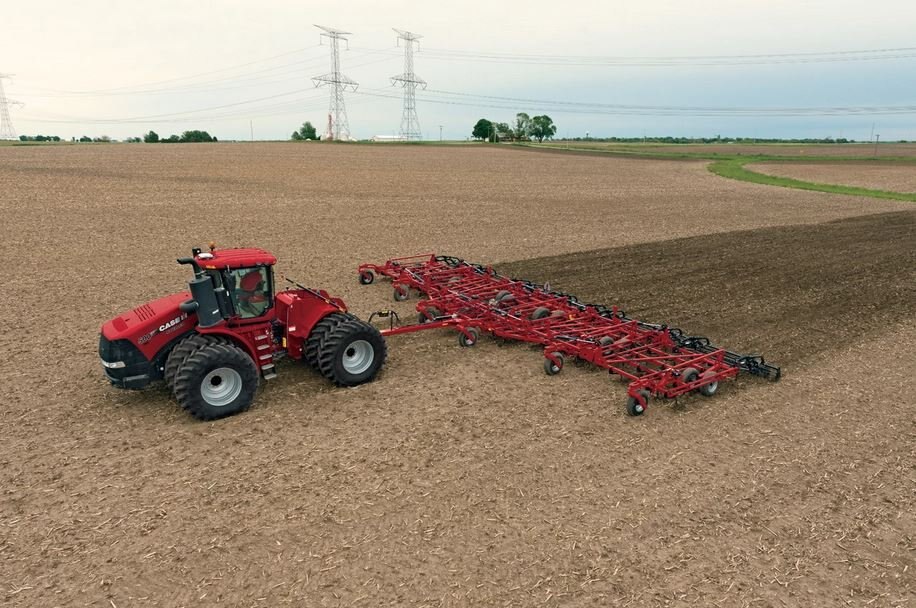

Tiger-Mate 255 Field Cultivator

Look to the Tiger-Mate® 255 for the durability and Agronomic Design™ features you need to create a high-efficiency seedbed for more efficient planting and maximum yield.

Rethink Seedbed Productivity

The Tiger-Mate 255 technology is designed to maximize yield potential in one spring pass. field cultivator creates a high-efficiency seedbed for the most accurate seed placement. From crop residue management to soil tilth to seedbed conditions, we designed this field cultivator with an eye on improving agronomic performance.

For high-clay and timber fields, the Vibra-Tine 265 S-tine field cultivator helps achieve optimal clod-sizing, a smooth field finish and healthier soil. Proven and effective S-tine technology is designed to maximize yield potential in one spring pass.

Specifications
Model
Field Cultivators
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Shanks
Split-the-middle
Frame Type
Single-fold, Double-fold
Depth Control
Electric - AFS Soil Command Hydraulic single point
Sweep Pattern
6-in shank spacing
Number Of Ranks
5
Sizes Available
5
Frame Configuration
3 Section, Folding
Max Total Weight Lb
10440
Max Number Of Shanks
65
Wing Frame Tire Size
280/70 R15
Connection To Tractor
Pull-Type, Category 3 or 4 drawbar
Center Frame Tire Size
280/70 R15
Pull-type Hitch System
Constant level
Max Working Width Ft-in
35ft 2in
Shank Spacing - In (mm)
6.5 (165)
Underframe Clearance In
25
Max Required Power Hp/ft
10
Transport Wheel Mounting
Walking tandem
Max Standard Trip Load Lb
180
Max Transport Width Ft-in
17ft
Max Transport Height Ft-in
14ft 2in
