Case IH VT-Flex 435 Vertical Tillage Tool

Videos
Call for Price
Overview

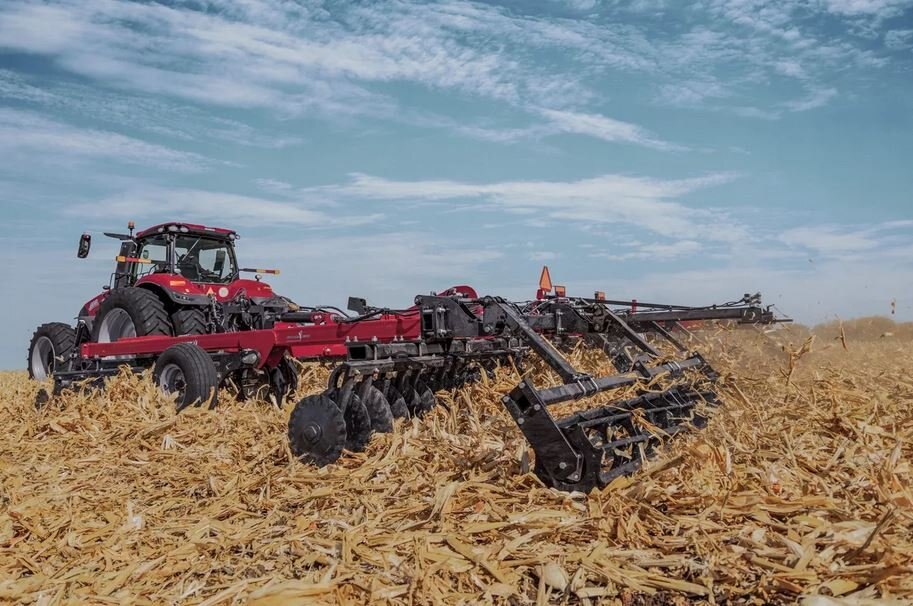

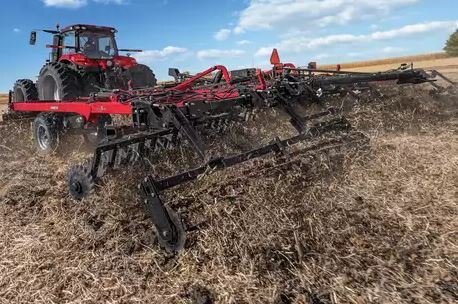

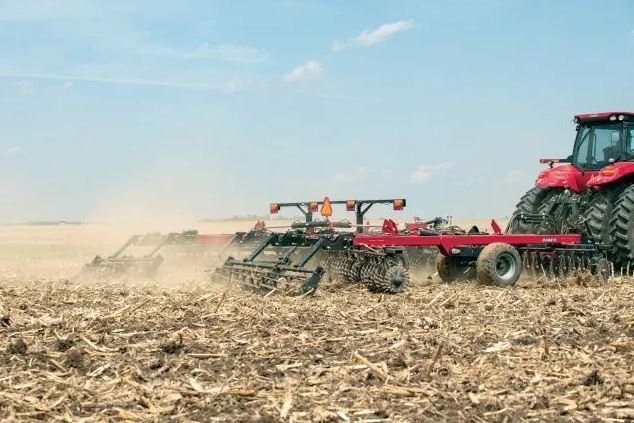

VT-Flex 435 Vertical Tillage Tool

The VT-Flex™ 435 vertical tillage tool helps producers manage their residue effectively with easy, on-the-go gang angle adjustments – whether using conservation or conventional tillage practices – to match your desired field finish and residue management needs.

The Case IH Soil Command tillage technology, which allows for fast, efficient and simple on-the-go tillage adjustments from the comfort of the cab, is standard on all VT-Flex 435 25-, 30- and 34-foot models.

Achieve Optimal Field Conditions

Our vertical tillage lineup is built on proven Agronomic Design™ principles with industry-exclusive blades. The True-Tandem 335VT and 335 Barracuda vertical tillage tools cover more ground in less time, so your fields are ready to go when your planting window approaches. Ideal for conservation to conventional tillage farming practices for varying sized operations, the VT-Flex™ 435 vertical tillage tool offers simple variable gang angle adjustments — from effectively sizing residue and preserving soils to mixing the most stubborn crop residue.

All vertical tillage equipment is available with Case IH Soil Command tillage technology that delivers greater accuracy, consistency, and data insights to make your operation more efficient. All adjustments are made on-the-go from the comfort of your cab.

Specifications
Model
Vertical Tillage
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Blade Type
22” reverse crimp notched blade or the 20” VT wave blade
Description
Basket
Blade Mounting
Gangs
Blade Concavity
Slight concavity
Operating Depth
1-4 in.
Sizes Available
7
Blade Spacing In
7.5
Transport Widths
13.7 ft. (25 ft. and smaller units)
Blade Diameter In
20
Blade Edge Profile
Wave
Primary Blade Type
Coulter
Fore-aft Configuration
Blade-Blade-Basket
Max Working Width Ft-in
34ft 1in
Max Transport Width Ft-in
17ft 10in
Max Transport Height Ft-in
13ft 10in
Transport Tire, Largest Size
340/55 - 16
Bars Or Blades On Circumference
Bars
Front Angle Of Gang Or Blades - °
12
Power Per Width Of Cut - Low Hp/ft
5.9
Power Per Width Of Cut - High Hp/ft
11.17
Manufacturer's Description Of Blades
Earth Metal VT Wave Blade
