ID # 37661811

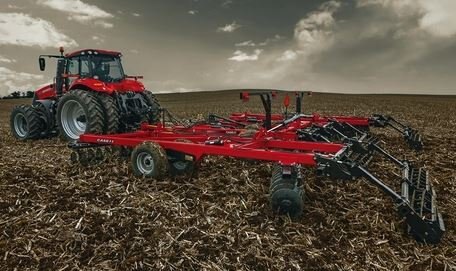

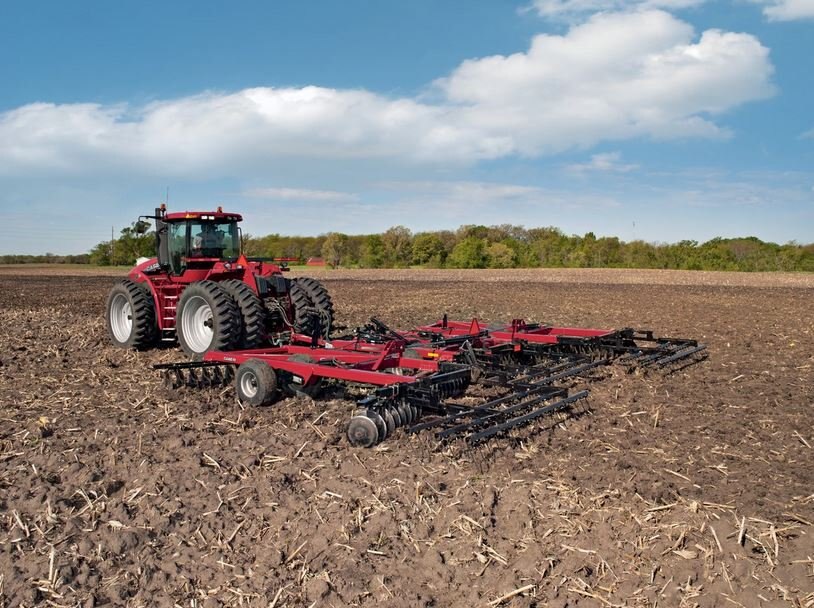

Case IH True-Tandem 345 Disk Harrow
Call for Price
Overview
Specifications
literature
Documents
True-Tandem 345 Disk HarrowCase IH True-Tandem™ 345 disk harrows, with blade spacing of 7.5 or 9 in, provide straight, easy pulling for primary tillage, seedbed preparation or chemical incorporation. |
Durable and Innovative Disk HarrowsTrue-Tandem disk harrows series deliver the latest disk harrows technology combined with Case IH durability. The rugged frame design, exclusive Earth Metal® blades and intuitive depth adjustment help you achieve seedbed perfection. Which true tandem fits the way you farm? |
Model
True-Tandem Disk Harrow
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Blade Size
22 in (560 mm)
Frame Type
Single-fold
Blade Spacing
7.5 or 9 in (190 or 229 mm)
Disk Bearings
Greasable
Max Weight Lb
19266
Blade Concavity
Standard concavity
Sizes Available
5
Disk Harrow Type
Tandem
Blade Edge Profile
Solid
Disk Blade Scraper
Spring steel, rigid arm
Gang Arbor Bolts In
1.5
Horsepower Required
220 - 485 HP (depending on size)
Disk Spool Description
4.5 (114) nodular cast iron
Gang Mounting To Frame
Rigid or C-Spring Cushion
Disk Blade Thickness In
0.18
Max Working Width Ft-in
34ft
Max Transport Width Ft-in
18ft
Max Transport Height Ft-in
13ft 8in
Min Transport Height Ft-in
10ft 5in
Optional Blade Edge Profile
Reverse bevel solid edge
Disk Blade Spacing - In (mm)
7.5 or 9 (191 or 229)
Disk Blade Diameter - In (mm)
22 (559)
Literature
| Name | Link |
| EXCEL | Download |
Documents
CompareSpecs(1).xlsx Model
True-Tandem Disk Harrow
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Quantity
1
Blade Size
22 in (560 mm)
Frame Type
Single-fold
Blade Spacing
7.5 or 9 in (190 or 229 mm)
