Case IH Speed-Tiller 465

  • Case IH Speed Tiller 465
  • Case IH Speed Tiller 465
  • Video Button Hqdefault
  • Video Button Maxresdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Speed-Tiller 465

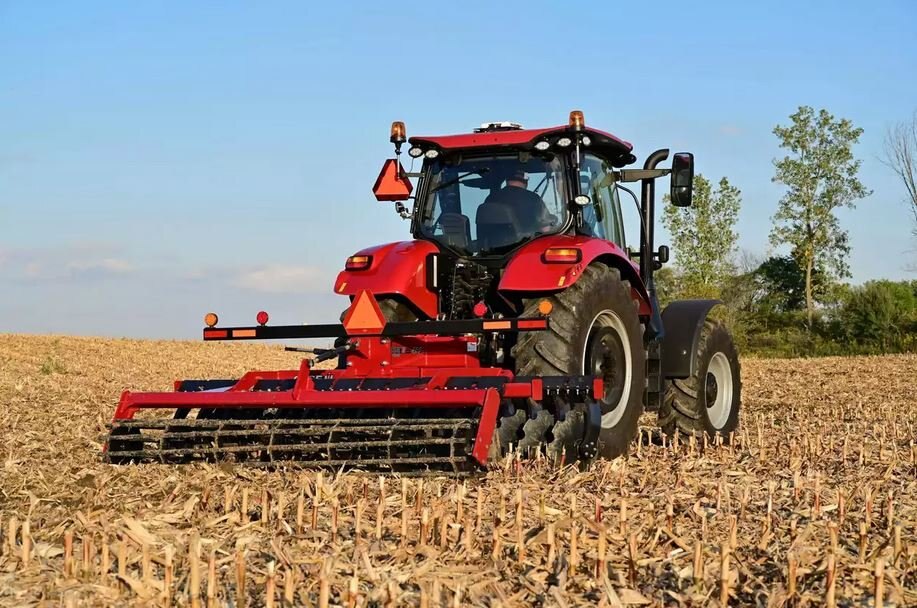

The Speed-Tiller 465 features a rigid 3-point mount, available in widths ranging from 5.7 ft to 18 ft.

Tackle Primary and Secondary Tillage With One Tool

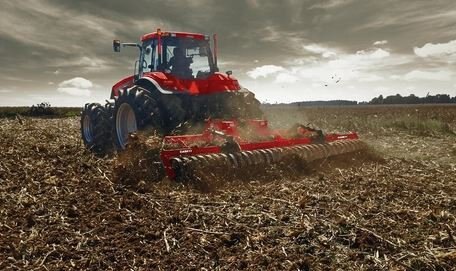

Case IH Speed-Tiller 465/475 are high-speed tillage tools that dig like a disk and finish like a finisher — maximizing the agronomic quality of the seedbed from surface to floor, fall or spring. Featuring indexed, independently mounted blades, these high-speed disks are available in either rigid mounted or trailing configurations to meet the unique demands of each operation.

Soil Command tillage technology will come standard on the 21-ft to 41-ft models, and lets you automate adjustments on-the-go from the comfort of your cab.
Specifications
Download Specs
Model
Speed-Tiller
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Case IH
Description
Crumbler roller
Frame Style
Rigid Mount
Max Weight Lb
9233
Min Weight Lb
3378
Operating Width
5.7 ft. - 18 ft.
Blade Spacing In
10
Number Of Blades
14, 16, 18, 20, 24, 28, 32, 36, 44
Widths Available
9
Blade Diameter In
22
Blade Edge Profile
Serrated front and rear
Primary Blade Type
Disk
Rolling Diameter In
16.5
Max Working Width Ft-in
18ft
Min Working Width Ft-in
5ft 9in
Max Transport Width Ft-in
18ft 11in
Min Transport Width Ft-in
7ft 5in
Engine Horsepower - Low Hp
70
Engine Horsepower - High Hp
290
Bars Or Blades On Circumference
Round bars 1.2 (30) dia.up to 12' width; 1.44 (36.5) dia. bars on 14' width & up
Power Per Width Of Cut - High Hp/ft
16
Advertised Tillage Speeds - High Mph
12
Manufacturer's Description Of Blades
22" (559) shallow concavity; 24" (610) std. concavity opt.
