ID # 37117268

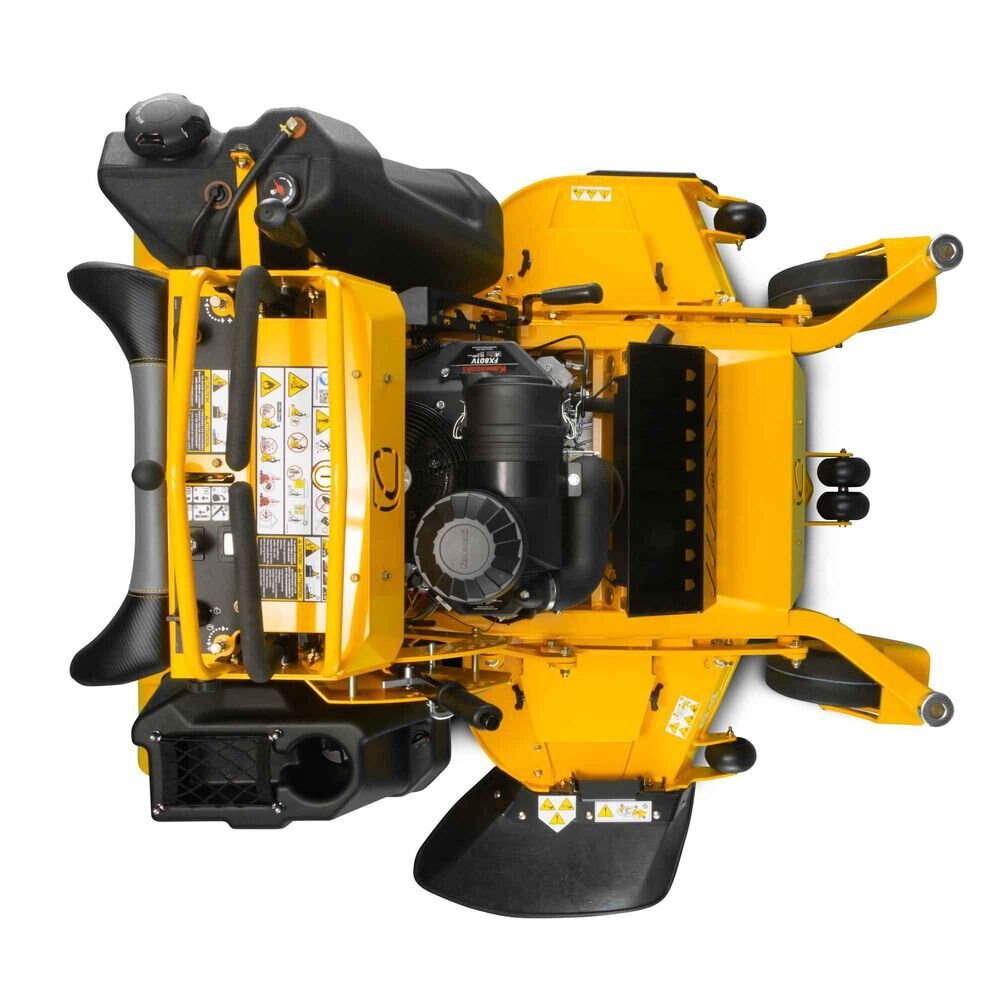

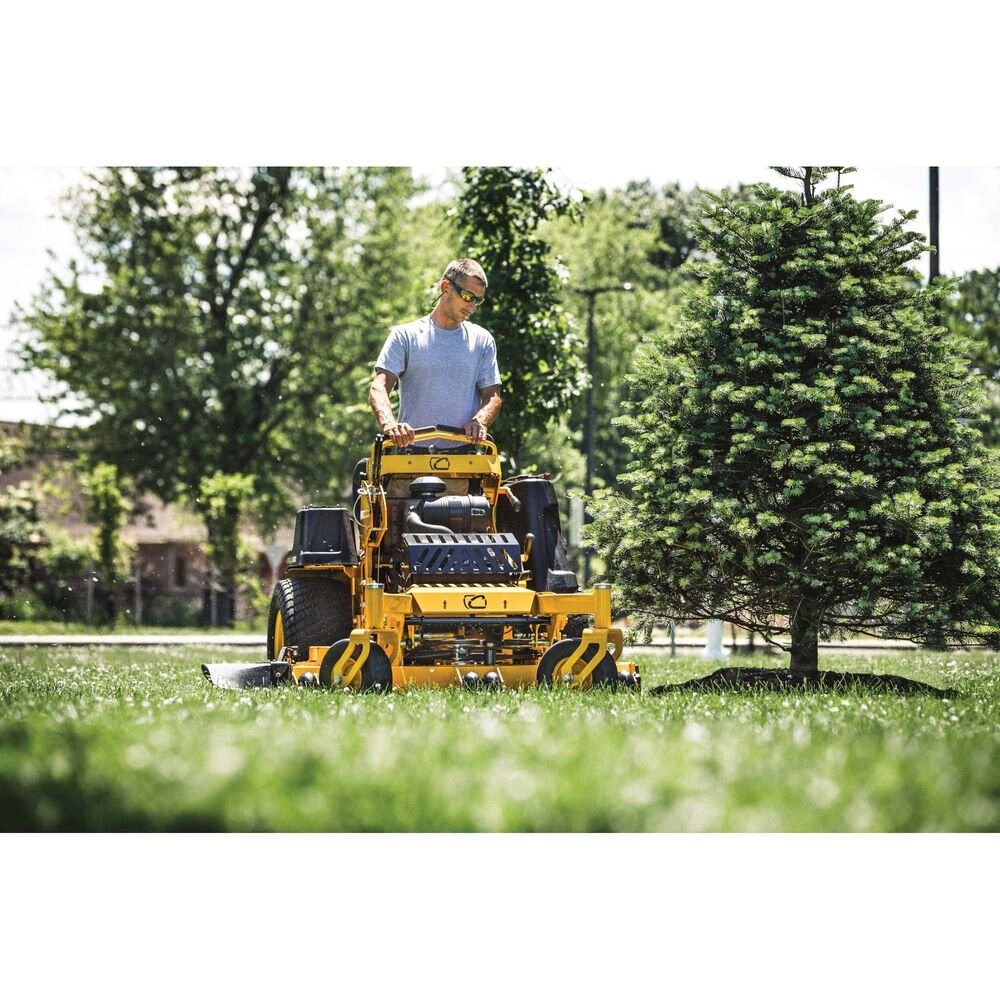

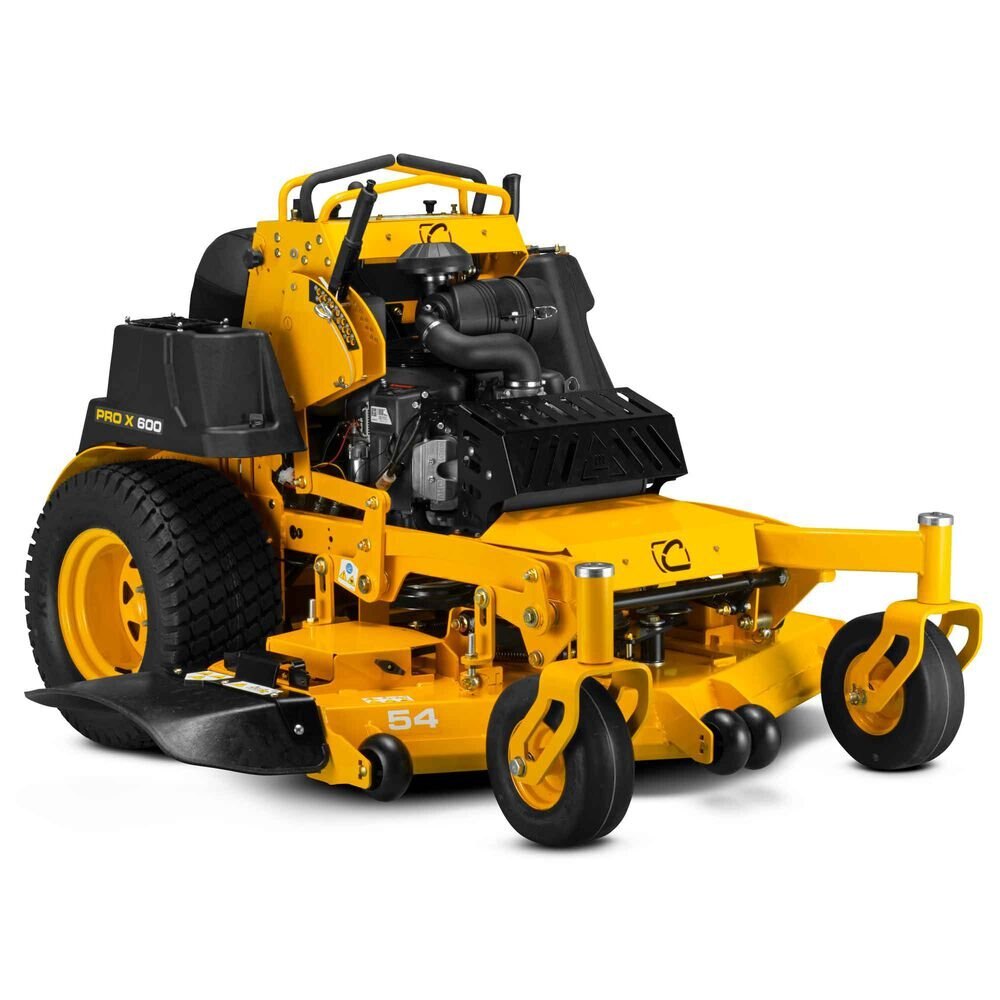

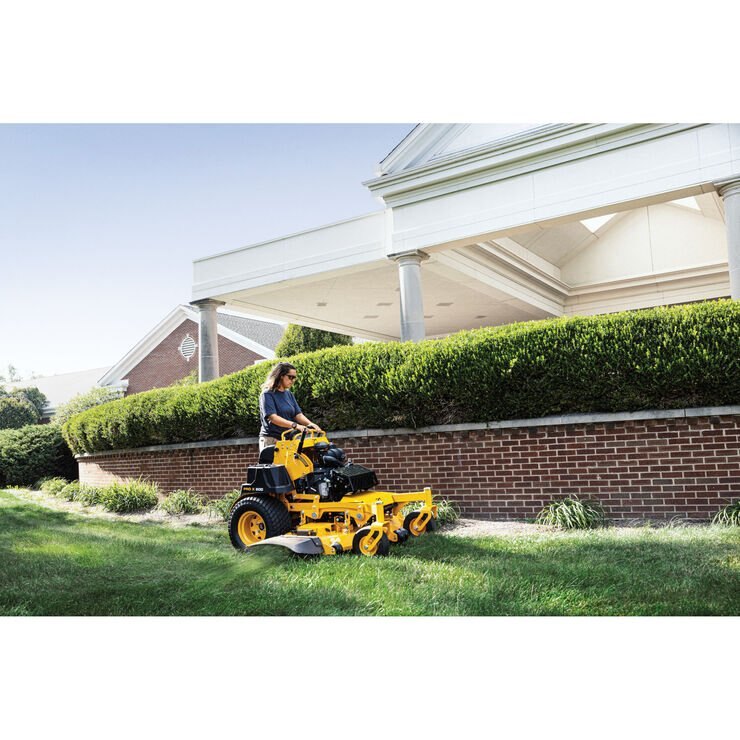

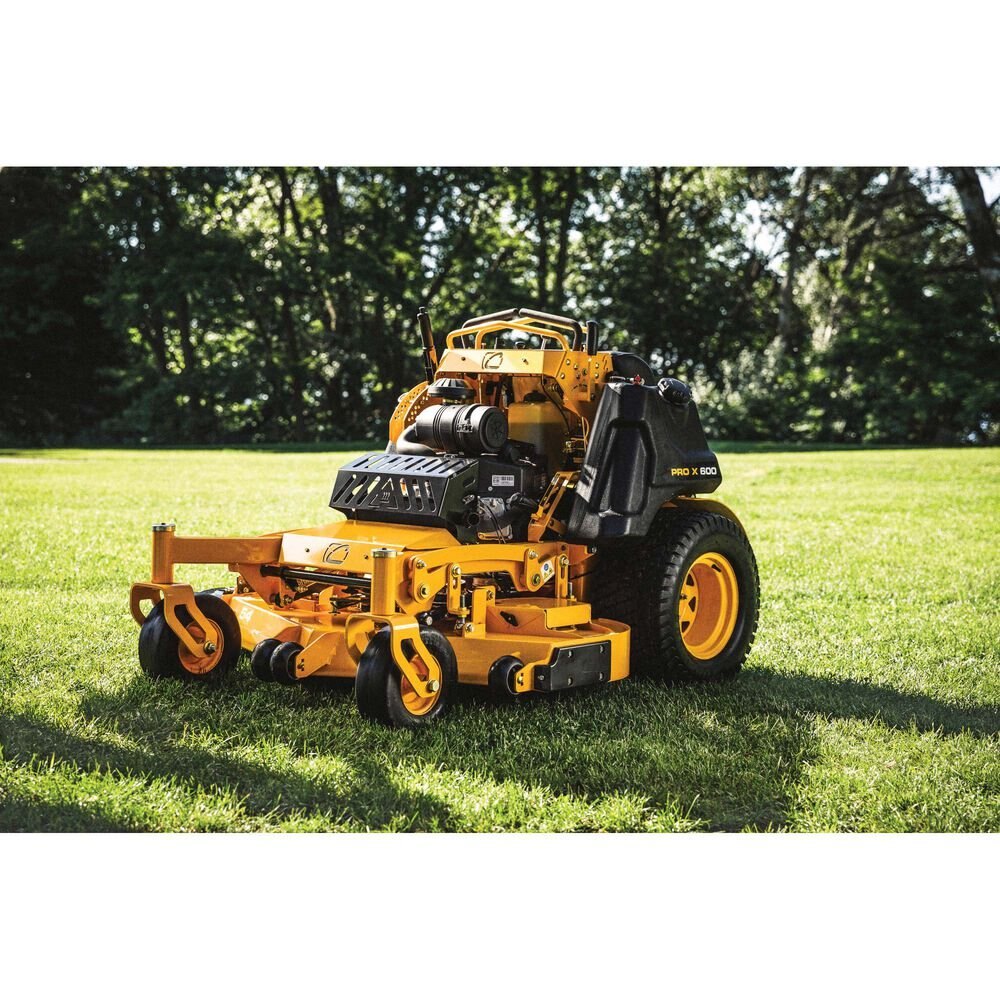

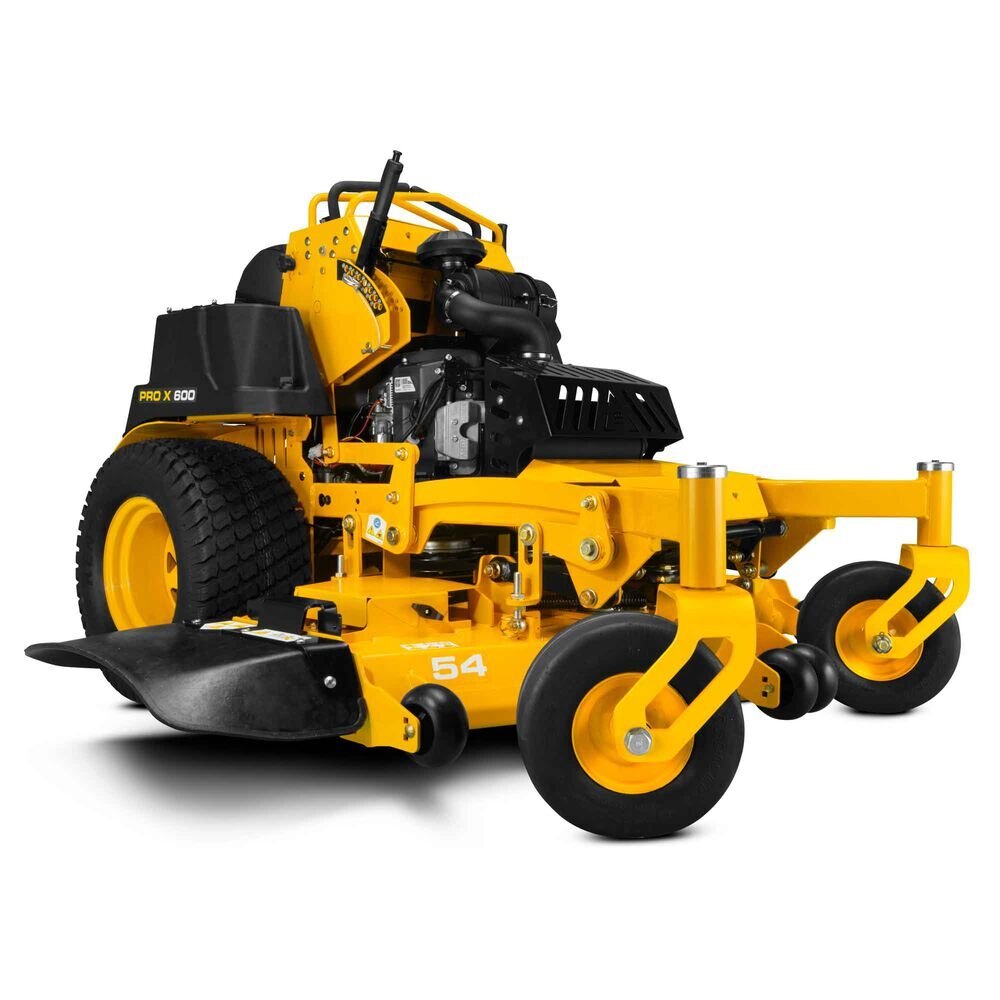

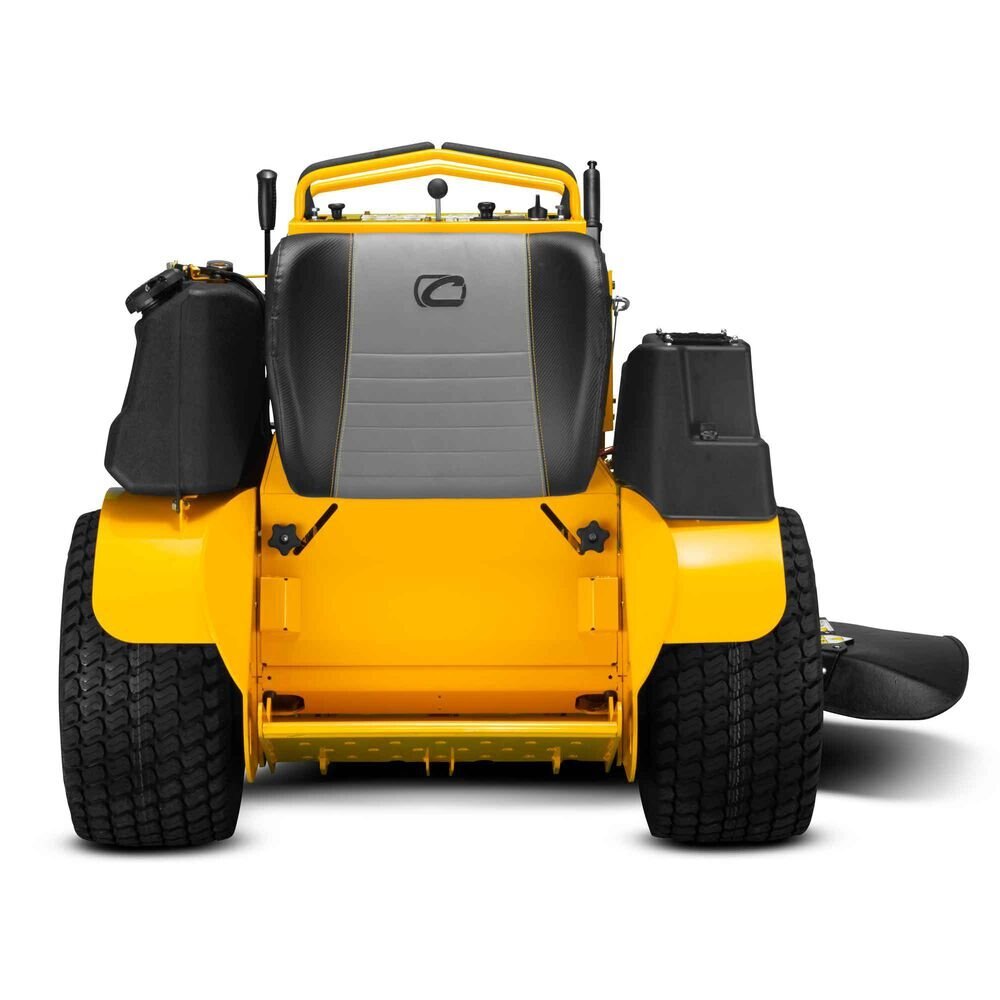

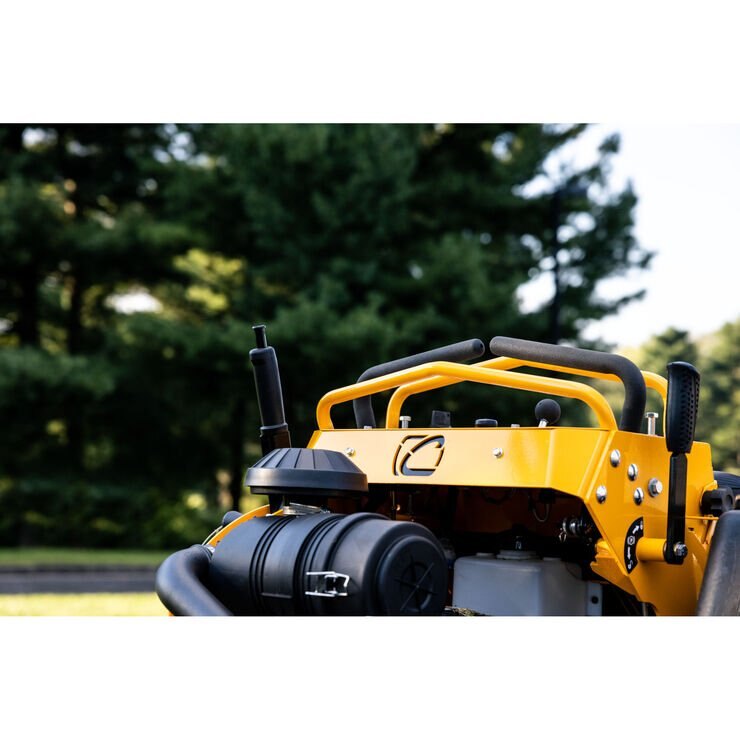

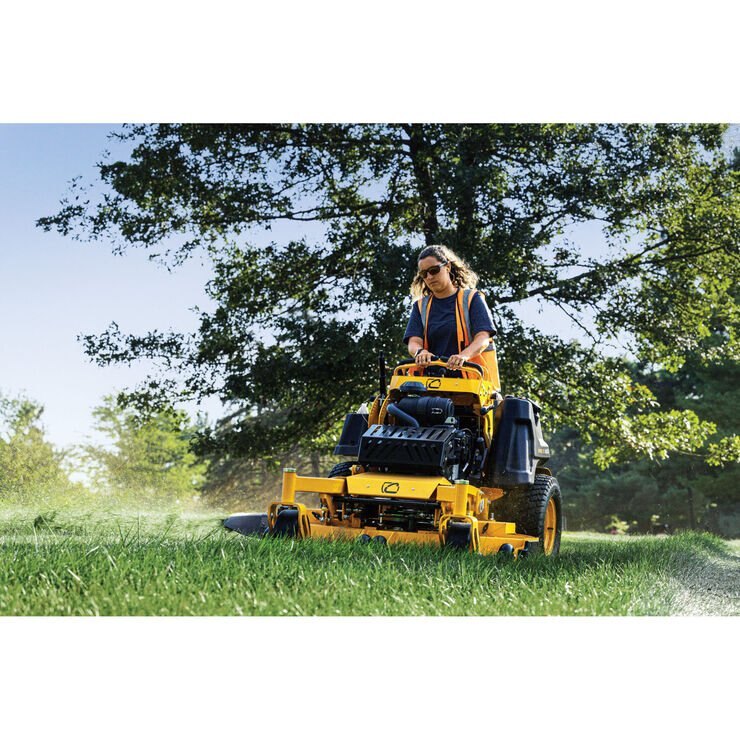

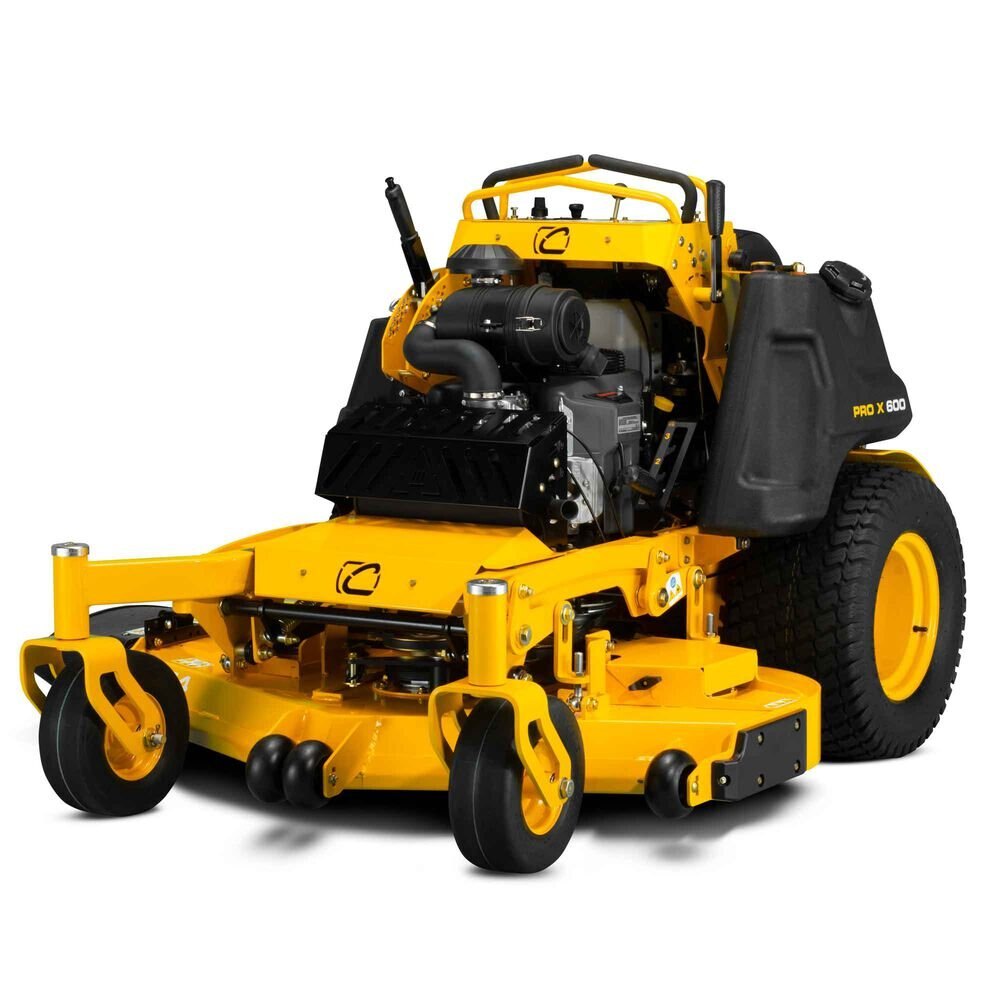

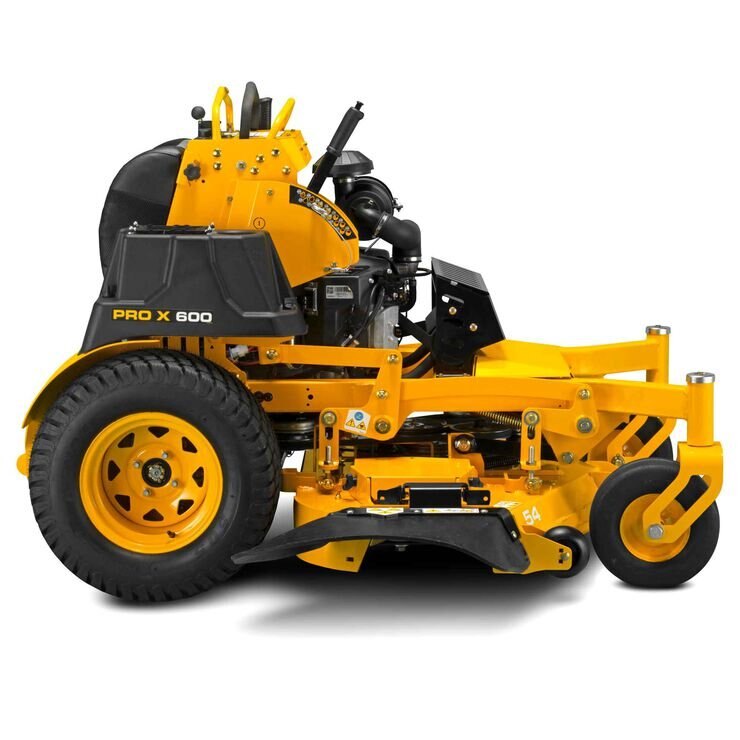

Cub Cadet PRO X 654 EFI

  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
  • Cub Cadet PRO X 654 EFI
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The Cub Cadet® PRO X 654 EFI 54-in. 29.5 HP* Commercial Stand-On Lawn Mower With EFI Engine features a fully fabricated 10-gauge steel commercial deck shell with top, bottom and side reinforcements. Standard 24-in. tires are designed to give you ground clearance to easily hop on curbs. A large, fully adjustable suspension platform is engineered to allow you to glide comfortably through tough terrains.
  • A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
  • A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
  • High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
Specifications
Model
PRO X 654 EFI
Category Name
Lawn / Garden
Year
2025
Sale Type
New
Manufacturer
Cub Cadet
engine
Choke
Auto-Choke
Cylinders
Twin
Air Filter
High Density
Fuel Gauge
Oil Filter
Lubrication
Fully pressurized

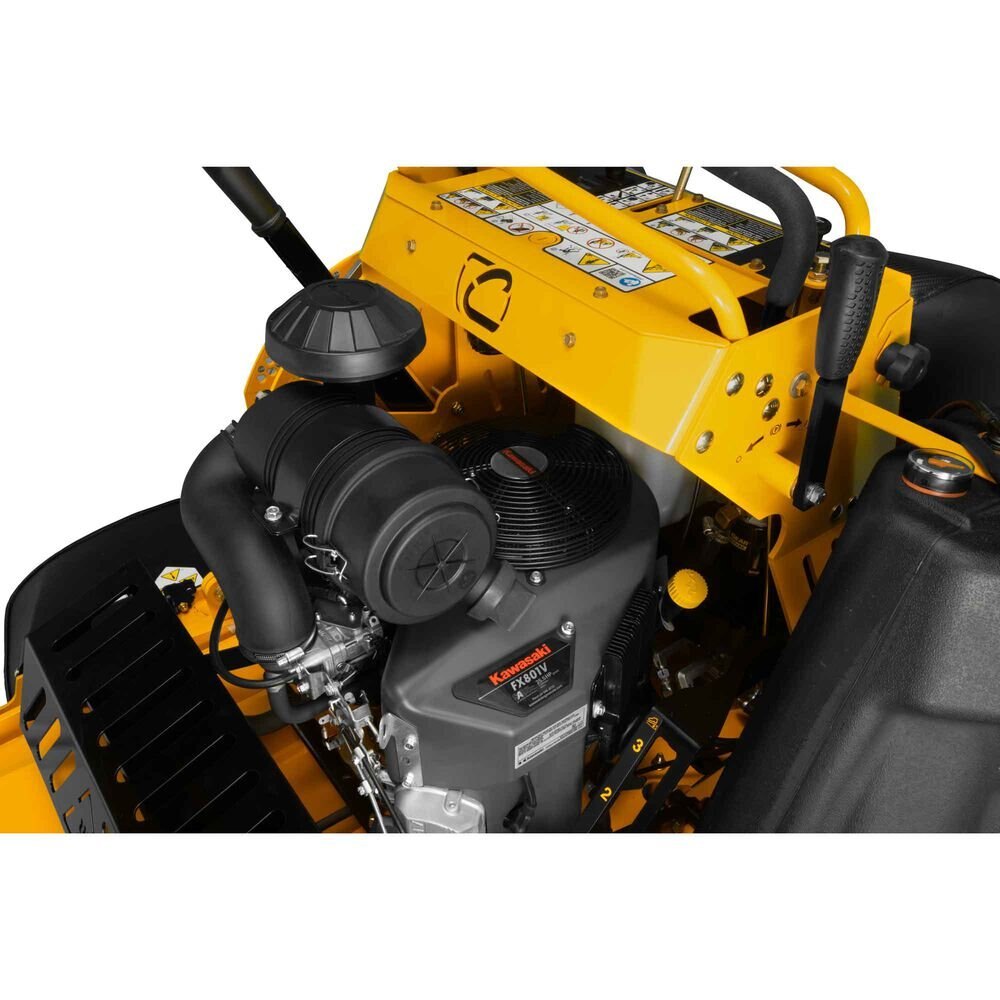

Engine Brand
Kawasaki®
Engine Model
FX Series EFI
Engine Start
Ignition Key
Starter Type
Electronic
Engine Output
29.5HP
Fuel Delivery
Electronic Fuel Injection (EFI)
Charging System
15 amp regulated
Fuel Tank Capacity
7.5 gal. US (28.4 L)
Engine Displacement
852cc
Engine Model Number
850V
Engine Oil Capacity
2.0 qt. US (1.89 L)
drive system
Transmission
12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
Forward Speed
10 mph / 16 km/h
Reverse Speed
5 mph / 8 km/h
cutting deck
Blade(s)
Three 19" long high-lift Marbain blades, 1-1/2" of blade overlap
Deck Lift
Hand lever adjusting spring lift, pin selector for height
Anti-Scalping
2 front deck gauge wheels
Deck Material
10-gauge steel
Deck Construction
10 ga shell w/ 7 ga top & bottom reinforcement
Deck Cutting Width
54 in
Cutting Height Range
1” to 5” in 1/4” increments
Spindle Construction
HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design
Deck Engagement (PTO)
Electronic with quick reset
chassis
Frame
2" x 3" full-length tube frame
Front Axle
2" x 3" tube construction
Suspension
Hand lever adjust, 3-position spring suspension foot platform
Front Caster Mount
3/8" thick steel
controls
Brakes
Hand lever control / external band
Steering Control
Lap Bar Steering Wheel Control
dimensions
Weight (approx.)
1080 lbs
wheels
Rear Tires
24"x12"-12"
Front Tires
13x5-6" Reliance Run Flat carlisle
additional specifications
Hour Meter
Crew Boss
Model Number
53RL8CSA050
warranty
Commercial Warranty
3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
disclaimers
Horsepower
*As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
