DR Power DR Field and Brush Mower PRO MAX34

Videos
Call for Price
Overview
 Go large! The top-of-the-line PRO MAX34 is the most powerful brush cutter we've ever made. Equipped with an extra-wide 34" mowing deck, you'll get the job done fast. And Power Steering puts you in charge.

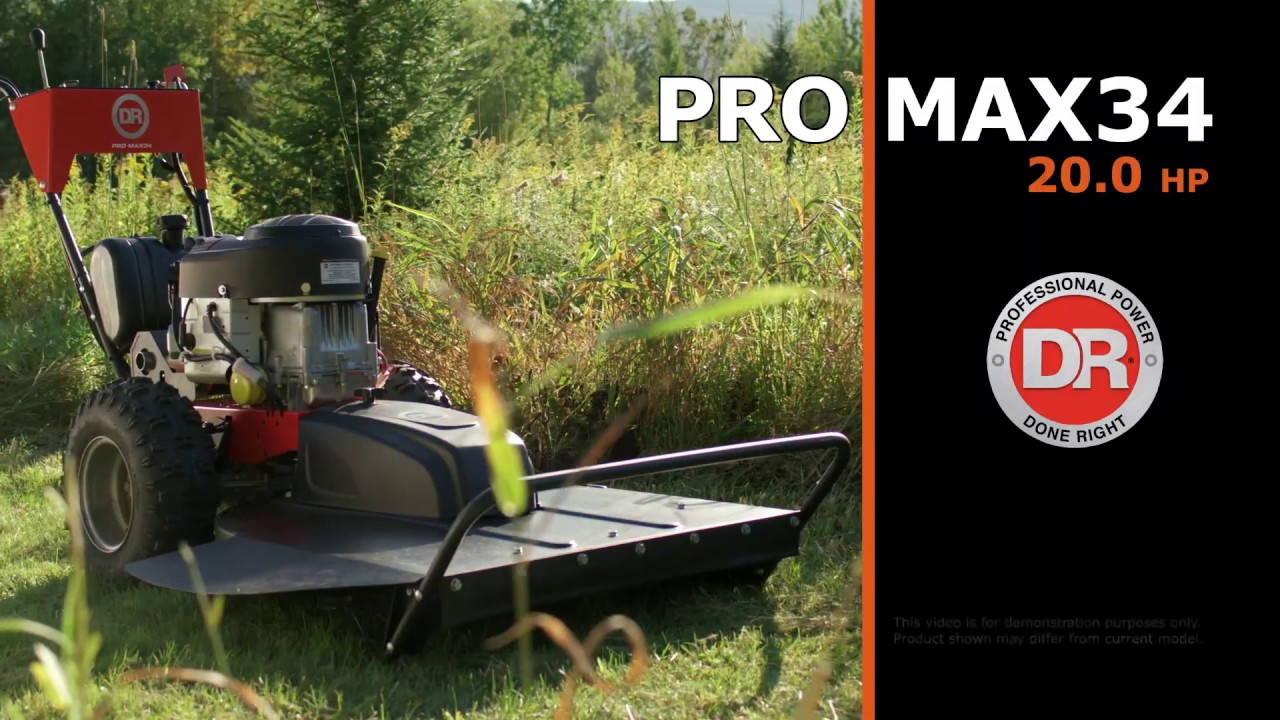

PRO MAX-34
Widest Cut Available and Maximum Power!

Our PRO MAX34 model gives you the widest mowing deck we've ever offered on a walk-behind brush mower. The extra width puts the machine's cut path well outside of its wheelbase, allowing you to easily mow right up next to fence lines, out buildings, trees, and other obstacles.

This is the widest, fastest, easiest-to-use (with Power Steering, of course) brush mower we have ever offered, coupled with our top-of-the-line 20HP V-Twin engine. It is perfect for you if you simply want to get the job done as quickly and as easily as possible.

Product Summary

  • 20 HP Electric-Starting Briggs V-Twin engine
  • 34" brush deck with with side discharge cuts mowing time by up to 40% over competitive models.
  • 3 forward speeds, 1 reverse
  • Pivoting deck follows contours of ground
  • Oil pump for better performance on hills
  • Accepts all optional attachments
  • See Features and Specs Tabs for more product details

Warranty Coverage:

  • Machine: 2 years residential; 90 days commercial
  • Engine: 2 years residential; 1 year commercial



Specifications
Model
DR Field and Brush Mower PRO MAX34
Year
2023
Sale Type
New
Manufacturer
DR Power
Clutch
Electric
Height
48.2"
Weight
339 lbs
Air Filter
Dual-Element
Horsepower
20
Engine Type
Briggs & Stratton Professional Series OHV
Make Engine
Briggs & Stratton
Cutting Width
34"
Fuel Capacity
2 Gallon
Starting Type
Electric
Cutting Height
3.5"
Shipping Weight
442 lbs
Cutting Capacity
6' High Grass; 8' High Weeds 3" Thick Saplings
Number Of Blades
1
Shipping Dimensions
62"L x 46"W x 50"H
features
Power Steering is Easy on You!

Our disc brake system provides Power Steering. Each wheel is equipped with its own brake, operated by a hand lever. Just squeeze the brake on one side, and the mower will pivot easily around that wheel. You're in control...without wrestling the machine!
DR POWER EZ DIAL POWER GRADER Superior Mulching

Our decks are enclosed on 3 sides, so that cut material is chopped and re-chopped, reducing grass and brush to a fine mulch. This means less material is left behind in your field, and none of the windrows you get with side-discharging mowers.



DR POWER EZ DIAL POWER GRADER 20 HP Briggs Twin-Cylinder Professional Series Engine

The legendary power, performance and durability of Briggs & Stratton® engines make them the obvious choice for our Walk-Behind Field and Brush Mowers. The PRO XL30 20 HP model features a Briggs Professional Series OHV twin-cylinder engine, with full-pressure oil pump (great for positive lubrication even on side slopes), a spin-off oil filter, 650 cc of displacement, (two) cast-iron cylinder sleeves, plus easy, turn-key electric-starting.

Control your Power Grader Stanchion
34" Super-Wide Pivoting Deck

The 34" deck on the PRO MAX our widest cut walk-behind brush cutter. And unlike the rigid, fixed decks found on some mowers, the DR deck pivots from side to side, allowing it to follow the contours of rough terrain. This feature minimizes scalping and improves traction.


Control your Power Grader Stanchion
Assembled in the USA

Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.


Control your Power Grader Stanchion
Gear-Driven Transmission: Lock it in and Rip it up!

Unlike hydrostatic drives, the DR's geared transmission lets you lock in your ground speed, leaving your hands free to steer the machine across uneven terrain (instead of fussing with touchy throttle controls as you go). With 3 forward gears, you can choose a fixed pace that's right for you.


Control your Power Grader Stanchion
Big, Lugged Tires for Sure Traction

No other brush mower has tires like this. They're the biggest (18" x 6.5" x 8"), they have superior lugged treads that pull the mower through or over just about anything, and they are sealant filled...which means they're highly resistant to puncture. Tough as nails, apparently!


Control your Power Grader Stanchion Custom-Made Blade Spindle

Made of 1.375" thick cast iron with oversized double sealed bearings, the blade spindle is integrated into the deck housing and reinforced for vibration-free performance. Designed to provide years of maintenance-free use (and abuse!).


Control your Power Grader Stanchion Commercial Grade Electric Clutch

Our industry-leading, self-adjusting clutch is designed for easy access and quick swapping out of optional attachments. After 245 hours of testing we only used up 10% of the life of the clutch. There are no cables to stretch or idler pulleys to get out of adjustment.
Control your Power Grader Stanchion Attachments Add 4-Season Versatility

Thanks to our quick-change coupling system, the DR's brush mowing deck can be swapped—in just minutes—with one of our optional PTO attachments: a 42" finish mower, a 30" snow thrower, a wood chipper, or a 42" grader blade. It's like owning 5 machines in one!
Control your Power Grader Stanchion
Built to Take a Beating

Field and brush mowing is a bruising business, and underbuilt mowers don't survive long out where the tough stuff grows. We frame our machines with heavy-duty, laser cut steel, and reinforce key stress spots so you get a product that will withstand years of use and abuse.


Control your Power Grader Stanchion Adjustable Handlebars

A comfortable working height is important, especially when traversing rough terrain.
Control your Power Grader Stanchion Ergonomic Controls

Both on the control panel and on the grips, all DR Field and Brush Mowers controls are designed to optimize operator comfort and minimize hand fatigue. Everything you need is right at your fingertips, so there is no walking around the mower to make adjustments.
Control your Power Grader Stanchion Heavy-Duty Powder Coating

Our frames and decks are finished with a tough, durable powder coating that resists scratching and promotes long life.
