Case IH 810 Flex-Air™ Applicator

Call for Price

810 Flex-Air™ Applicator Spray Later Into The Season With Miller Nitro Series Sprayers
Precise and predictable product delivery is achievable with the 810 Flex-Air applicator featuring three metering gate heights to match rate requirements with field conditions and ground speeds.
​Quick Specs

Quick Specs
  • Main Bin: 287 cu ft (8.1 cu m)
  • Length (Boom Folded): 14.3 ft (4.4 m)
  • Weight: 6,560 lbs (2976 kg) *single bin weight
Titan™ Series Floaters
Built for handling the tough demands of changing terrain and accurately applying fertilizer and chemicals.

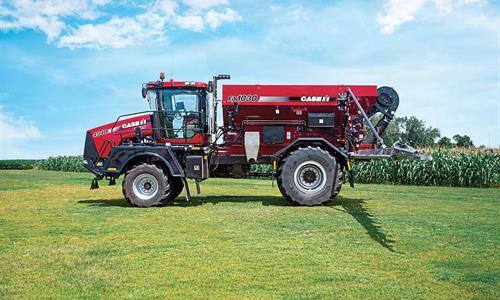

FA 1030 Air Boom Applicator: Accurate. Flexible. Efficient. Spray Later Into The Season With Miller Nitro Series Sprayers
 Get more done in tight windows and in challenging conditions. Now available for the Titan™ 4540 floater, the FA 1030 air boom applicator is built to carry more product, enhance productivity and deliver accurate application across changing terrain. Plus, a range of configurations and efficient variable-rate application systems help match the applicator to the operator’s needs and optimize coverage and productivity.
Leading the Industry Leading the Industry
Built to get more out of every day and pack more productive days into every season, Titan Series floaters are ready to help you make the most of your windows of opportunity. Whether you're applying liquids, granular materials, or both, you'll be riding high in a machine that's designed to meet the needs of professional applicators. It's about rugged construction. Machines with productivity improving features, the best service and support network in the industry and a legacy of leadership that puts a premium on delivering real value.
  • Delivering More Power More Efficiently
    • Feature Case IH FPT high-horsepower engines with industry-leading SCR (Selective Catalytic Reduction) Tier 4 emissions control
    • SCR is located outside the engine allowing the Power Plant to be tuned for power and performance and the emissions compliance handled externally
    • Includes high-capacity cooling systems, rugged transmissions and increased horsepower
    • Deliver all the performance you've ever wanted in a floater
  • Simple to Service for Maximum Uptime
    • Easy access to service and maintenance items allows for quick checks and routine inspections while getting you back into the field sooner
    • Frames and booms are designed for maximum strength, durability and unmatched reliability
    • These tough machines prove themselves every day, year after year in the field
  • Quality Application
    • From the big booms, big tanks, and efficient plumbing of our 610 Liquid System to the precise co-application flexibility of the FA 1030 Air Boom and 810 Flex-Air™ applicators you can cover more acres, more accurately
    • Feature rugged suspension and boom design that ensures efficient, consistent and precise application
  • Operator Environment
    • Titan Series floaters feature the Case IH Surveyor® Cab to deliver comfort, convenience and more control over the operator environment
Productive Power Productive Power
Available in two horsepower ratings, the Titan 40 Series’ high-horsepower diesel engines feature the world-class design innovations of FPT Powertrain Technologies. A sister company of Case IH, FPT is a global engine development leader that makes more than 2.6 million engines every year. Engineered for extraordinary quality and durability, and tested and proven by Case IH engineers, this 8.7-liter engine is designed to meet the tough conditions found in agriculture while delivering optimum fuel efficiency and ease of service. FPT world-class design innovations power all Case IH products over 100 hp, delivering Efficient Power to increase responsiveness and fuel efficiency.

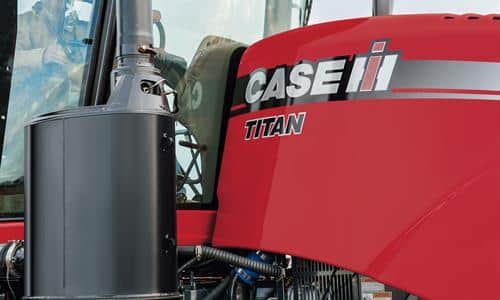

  • Clean Air Exhaust
    • Case IH SCR after-treatment system converts nitrogen oxides into nitrogen and water
    • Change is triggered by a non-toxic, odorless mixture called Diesel Exhaust Fluid (DEF)
    • Engine design maximizes power and performance, reduces particulate matter
  • Selective Catalytic Reduction (SCR)
    • SCR maximizes horsepower because the system is separate from the engine
    • The design leads to better fuel economy and improved engine durability and you still have the flexibility to choose among diesel fuel varieties and grades
    • SCR meets stringent Tier 4 B/Final emission standards
More Comfort Means More Acres More Comfort Means More Acres
When application windows are narrow and every hour in the field counts, operator comfort is no luxury - it's absolutely essential. Comfortable operators are productive operators and they help boost your bottom line. That's why Titan Series floaters are equipped to let operators work longer with less fatigue. Ergonomic seating, easy-to-reach controls and an ultra-quiet interior are just a few of the features that help make the most out of long days in the field.

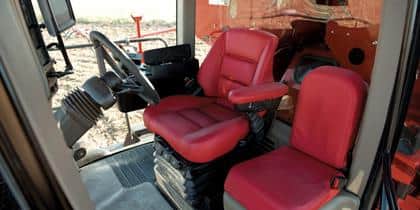

  • Air-ride Seat
    • Adjustable for position, ride firmness and lumbar support
    • 40-degree right-hand swivel seat gives you a 180-degree full field vision and less neck strain
    • Instructional seat can be folded down when not in use to provide a mobile office with cup holders
    • Sufficient room to stretch your legs
    • Elevated footrest pegs provide a welcome alternative position
    • Luxury cab option: red leather operator and instructional seat and leather wrapped steering wheel
    • Carpeted floor mat

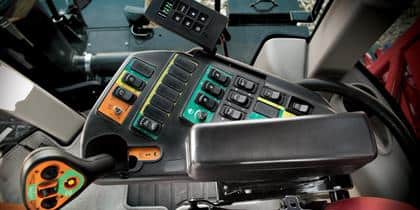

  • Control Switches


    • Chassis and application control switches are ergonomically placed
    • Attached to operators seat or in the headliner to the right of the operator
    • Spreading and spraying controls are located on the control lever for simple one-handed operation
    • Cruise control operation is performed using the switches located on the right-hand control console

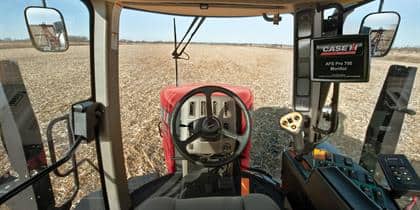

  • Surveyor® Cab



    • Four pillar design provides 132 cubic feet of working space
    • Opens up the view in every direction
    • One-piece curved, tinted, front windshield has more glass than any competitive model
    • Sloped glass to reduce glare
    • 90 square feet of cab glass for unbelievable visibility
    • Low-profile hood helps provide an amazing field of view for operating safety and confidence
    • Sunshades keep the operator cool and comfortable
    • Pressurized cab to keep the inside air clean and fresh all day

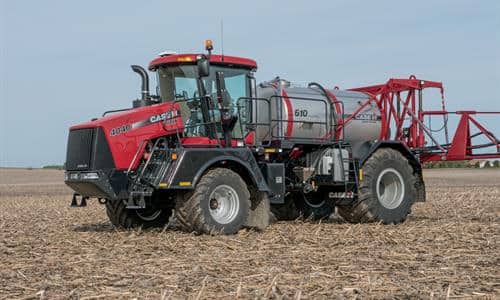

3-Wheel Floaters3-Wheel Floaters
Ready to work? So are these floaters. From its solid, durable chassis frame to its robust drivetrain, a Titan 40 Series 3-wheel chassis is designed to work as hard as the rest of your crew during your application windows. For the applicator who needs to stay out in front, both of schedules and the competition, here’s the 3-wheel option that’s second to none.

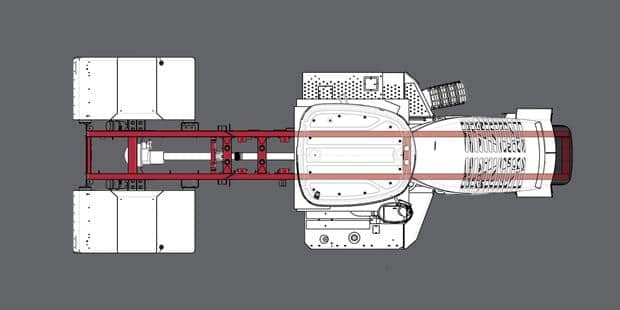

Durability and Strength






  • 4 times the life of earlier designs with high-strength, low-alloy (HSLA) cold-formed rectangular steel tubing
  • Continuously welded, not bolted
  • Open architecture frame design that allows for better airflow to keep engine running cool and efficient
  • Front Fork Assembly Design
    • A large 8-inch shaft diameter at the attachment point and 7 inches at the bearing area
    • 1.5 inches more than the closest competitive design
    • A 6-degree rake on caster provides the tight turning performance you want from a 3-wheeler
Power Train Designed for the ApplicationCase IH 810 Flex Air™ Applicator
  • 6-speed Allison automatic transmission and 2-speed rear axle
  • Optional, factory-installed 2-speed auxiliary transmission doubles the speed range choices
  • 4 speed ranges with 6 gears in each range
  • Simple rotary dial to choose the appropriate range for particular field conditions and operating speeds
  • 3-wheel floaters have a big rear axle rated at 34,000 pounds with wheel end planetaries
  • Provides the rugged durability that is required to handle tough terrain and today's demands
Better Brakes
  • Standard on the 3-wheeler is a "Front-Assist" disc brake that uses air over hydraulic actuation to supply one-fourth of the machine's total braking capability
  • Timed braking to let the back brakes engage first for improved stability while stopping
4-Wheel Floaters
4-Wheel Floaters
The performance and productivity of any floater rests solidly on the structural integrity of its frame. That’s why 4-wheel Titan 40 Series floaters are designed to withstand the most demanding field conditions. These sturdy frames are built of 10 x 4 x 0.375-inch rectangular cross-section steel tubing. And they're continuously welded, not just bolted together. Welded-in torsion tubes plus top and bottom doublers in key stress areas combine to form a rigid frame that withstands heavy loads and protects the mounted components from field-induced fatigue failures.
Optimum Control Means Maximum EfficiencyTitan_Advanced Farming Systems
Thoughtfully designed, well laid-out controls let operators make the most of every hour in the field. Advanced control technologies increase accuracy, minimize over- or under-applications, and get every bit of value from each drop or granule you apply. Titan Series floater control options give you a range of ways to get the very most out of your floater, and your application windows.
  • AFS 372 Receiver
    • Optional upgrade for the ultimate in automated accuracy
    • Provides precise signals for differential correction
  • Viper 4+
    • 12.1-inch Touch-Screen Interface
    • Displays boom status, application rate and pressure readings
    • Functions as a stand-alone rate controller or it can be an integral part of guidance or mapping systems
    • Available for all versions of the FA 1030 Air Boom Applicator, 810 Flex-Air Applicator and 610 Liquid System
  • RS1 Autoguidance
    • Compatible with the Viper 4+ controllers
    • Guidance, GPS receiver and Slingshot® functions all in one component
    • Includes fleet management, wireless data transfer, remote diagnostics and over-the-air-updates
Get More Work From the Work Day
Get More Work From the Work Day
At Case IH, we make "maximum uptime" one of the pillars of every product we offer. Simply put, that means designing and building equipment that optimizes time in the field every day of their long, productive life. One important way to do that is to make routine maintenance as easy, quick and trouble-free as possible. This maximizes uptime two different ways. It gets your machine out in the field and productive as quickly as possible every day. And because it makes service so convenient, it increases the chance that nothing gets skipped, and that means a machine that runs better, longer.
810 Flex-Air™ Applicator 810 Flex-Air™ Applicator
Precise and predictable product delivery is achievable with the 810 Flex-Air applicator featuring three metering gate heights to match rate requirements with field conditions and ground speeds.
Quick Specs
  • Main Bin: 287 cu ft (8.1 cu m)
  • Length (Boom Folded): 14.3 ft (4.4 m)
  • Weight: 6,560 lbs (2976 kg) *single bin weight
810 Flex-Air System Highlights
  • 810 Flex-Air Box
    • The 810 Flex-Air is the only single bin system in the industry featuring a split bin for carrying one or two blends.
    • Base capacity is 287 cu ft (8.1 cu m).
    • Total capacity is increased to 346 cu ft (9.8 cu m) with available co-ap bins and supplemental augers.​
  • Co-Ap Bins
    • Case IH Flex-Air co-ap bins are available in 50 cu ft (1.4 cu m) capacities.
    • Bins are mounted externally on the main bin so capacity is not compromised.
    • Bin tip-out feature, extra-large doors and wind cover latches make access a breeze.
    • Internal illumination of co-ap bins and metering housing provides easy monitoring in low light conditions.
    • Three metering wheel sizes available for all your application needs.
  • Efficient Design
    • Externally mounted 500-gallon liquid system
    • Separate hydraulic motors control the conveyor's on/off and left/right shut-off without high-maintenance gearboxes or clutches
    • Twin fans are mounted directly behind and under the metering system, with direct air inlet screens for maximum efficiency.
    • Fan speeds up to 6,000 RPM ensure there's plenty of air volume to carry product down the booms.
  • Product Delivery System
    • Product is transferred from the main bin to the product delivery hopper via an 8 in (20.3 cm) auger and flows freely from the hopper to a dual conveyor belt system.
    • The dual conveyor belt system dedicates one conveyor to each boom, allowing for instantaneous on/off and true left/right shutoff capability.
    • Each conveyor has its own metering gate system with three gate-height adjustments.
    • Vertical product dividers evenly split product flow before it drops off the conveyors into dedicated venturi tubes.
    • Product is carried out of each boom tube on a bed of accelerated air for even dispersal on the ground.
  • Mid-Mounted Booms
    ​Case IH 810 Flex-Air mid-mounted booms are located over the chassis’ center of gravity, forming a very stable spreading platform with reduced boom hop.
    • A parallel-linkage suspension system utilizing compression springs and centering shocks supports the booms; absorbs shock loads; and maintains a level boom.
    • Booms fold forward into the spreading position and fold rearward for transport, allowing for excellent visibility while traveling from field to field.
    • Booms are available in two widths: 60 ft (18.3 m) or 70 ft (21.3 m).
    • The 60 ft (18.3 m) boom comes with 2.5 or 3 in (53.5 or 76 mm) diameter tubes
    • The 70 ft (21.3 m) boom comes with 2.5 in (63.5 mm) diameter tubes.
    • The four rear tubes on both boom widths are 3 in (76 mm) diameter.
  • Versatility
    • Cover more ground with one machine.
    • Accurately apply both dry fertilizer and granular herbicides.
    • Materials delivered and metered near the distribution point makes changing rate quick and easy.​
    • The Case IH Viper 4+, for single or multiple product applications at fixed or variable rates.
      • The Viper 4+ will perform data logging and a variety of field-mapping functions via the full-color touchscreen display.
810 Flex-Air™ Applicator
