Case IH L350A

Call for Price


Compatible with:

  • Compact Farmall® 35C
  • Compact Farmall® 40C
​​​​​​Quick Specs
Lift Capacity at Pivot Pin: 2,000 lbs (907 kg)
Lift Capacity 19.7 IN (500 MM) from Bucket: 1,540 lbs (699 kg)
Lift Height: 105 in (2667 mm)

L300A Series Loaders

These loaders are compatible with compact Farmall® Series tractors, and offer great visibility to the bucket, as well as durable curved boom arms.

Designed to Perform
 Curved Boom Loader Arms:

  • Let you easily see to the top of the bucket and around the front tires.
  • Provides greater strength with less weight vs. traditional dog-leg designs.

    Loader  Mounting Brackets

  • Are fully compatible with other attachements, including front-mount snow blower, blades or broom.

Mid-Mount Frame

  • Makes loader connecting and disconnecting fast and easy.
  • Makes servicing the tractor engine, radiator and battery quick and simple

Built Tough to Take the Twisting Forces of Heavy-Duty Loader Work

 Four-Bar Linkage

  • Heavy-duty reinforcements for greater strength.
  • Large, rectangular, loader torque tube for better duarability.
  • Construction-grade, 1-inch, nonrotating pins for easy servicing.
  • Available four-bar linkage if you demand:
    • Greater dump and rollback angles
    • Fuller filing and easier emptying

Quick-Attach System

 The Quick-Attach faceplate allows you to switch easily between attachments, such as:

  • Buckets
  • Multi-Use Forks
  • Pallet Forks
  • Bale Probes

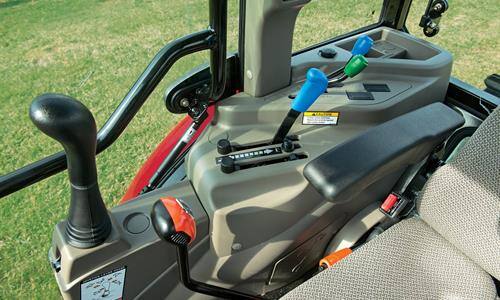

Deluxe Controller

 Stay in Total Control

  • Gives you right hand total control of the front-mounted attachments.
L350A for Farmall 35C, 40C
Sale Type
Case IH
sales literature
Literature Date
November, 2016
Literature Number
Manual 48077340, 2nd edition
tractor compatibility
Matching Tractor Model Or Series, First
Farmall 35C, 40C
Matching Tractor Model Or Series, Second
Tractor Tires Listed In Loader Specification
25x8.5-14 front; 43x16.00-20, R4 rear
self-levelling feature
Mechanical (MSL), Hydraulic (HSL), Or Non-self-leveling (NSL)
couplers for buckets and attachments
First Coupler Type Available
Skid-steer style
Other Coupler Type Available
Second Coupler Type Available
loader weight- separate from tractor
Weight, Loader Only, Lb (kg)
hydraulic function-ride and detachable features
Third Function Valve Available
Cushioned Hydraulic Ride Control
Loader Quick-attach-detach From Tractor
