ID # 19809327

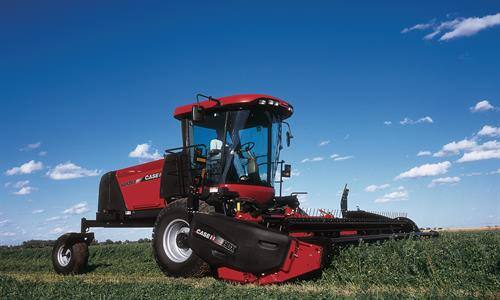

Case IH HDX182

  • Case IH HDX182
  • Case IH HDX182
Call for Price
 Get a Quote  Get Financed  Value a Trade  Book a Demo   Get Directions  Print
Overview
HDX182HDX142
The 18 ft HDX182 Sicklebar Header provides quality cutting at uncompromised speed for even heavy crop conditions.
​Quick Specs
  • Cutting Width: 18 ft 3 in (5.56 m)
  • Cut Height Range: 1.2 - 6.2 in (30.5 - 157 mm)

HDX182 Highlights
  • 18 ft 3 in (5.5 m) cut length
  • Adjustable 5-bat reels and segmented tine bars for consistent feeding and ease of repair
  • Double sickle cutting system for a cleaner cut even in the harshest conditions
  • Bolt-on sickle sections for easy maintenance and replacement
  • Over-serrated knives self-sharpen for extended life and cut cleaner
  • Adjustable auger for optimal feeding into the conditioning system


Sicklebar Headers
3 Models, 14’ 3” - 18’ 3” Cutting Widths: Case IH HDX 2 series sicklebar headers, built for heavy crop conditions, use the counter-stroking action of dual sickles to shear crop cleanly while the unique floating auger keeps the crop moving smoothly to the conditioning rolls.
Build & PriceView Offer
Made for the Toughest Situations
Made for the Toughest SituationsThe Case IH HDX 2 Sicklebar Hearder uses a counter-stroking action of dual sickles to shear crop cleanly while a unique floating auger keeps the crop moving smoothly.
  • cutterbed
    • Heavy-duty wobble drives ensure long, trouble-free life
    • Bolt-on knife sections are standard for easy replacement
    • Overserrated knife sections provide long life and a clean cut
    • Double heat-treated range guards provide superior resistance to rock damage
    • The cutterbar angle adjusts hydraulically from 6 to 12 degrees below horizontal
    • Available stub-on-stub guards penetrate tough, tangled crops
  • Unique Floating Auger
    • Unique floating auger to keep the crop flowing smoothly to the conditioning rolls
    • 20 in (508 mm) auger with 5 in (178 mm) flighting
    • Auger floats up to 2 in (50.8 mm) to let slugs of material pass underneath without plugging
    • Auger slip clutch protects auger and drive system
  • Skid Shoes
    • Skid shoes feature five position adjustments
    • Combine this with the hydraulic adjustable header and you can adjust guard angle and cut height from 1.2 – 6.2 in (30.5 – 157 mm)
  • Available Options for the WD4 and the HDX 2 Series
    • In-cab control of reel speed
    • In-cab control of windrow width
    • Header gauge wheels
    • Tall-crop lean bar kit
    • Crop dividers

Specifications
Download Specs
Model
HDX182
Year
2022
Sale Type
New
Manufacturer
Case IH
reel
Number Of Bats
5
Reel Diameter, In (mm)
42 (1067)
Reel Speed, Mechanical, Rpm
52 to 83
auger
Auger Speed, Rpm
287
Auger Description
Single, floating
Auger Diameter, In (mm)
20 (508)
roll conditioner
Roll Speed, Rpm
717
Roll Length, In (mm)
102 (2591)
Roll Diameter, In (mm)
10.375 (263.5)
sales literature
Literature Date
Ju;y, 2011
Literature Number
CIH07211103
sickle cutterbar
Knife Drive
Open, dual, wobble
Single Or Double Knife
Timed dual counterstroking
Knife Speed, Strokes Per Minute
1810
sicklebar header
Cutting Width, Ft In (m)
18' 3" (5.56)
Overall Width, Ft In (m)
20' 3" (6.17)
Cutting Height Range, In (mm)
1.2 (30.5) to 6.2 (157)
